Demo Questions

Question 1
When a router receives an IP packet, but does not find a match in the routing table for the destination IP address, what actions are performed by the router?
  1. The packet is flooded out all router interfaces.
  2. The packet is dropped and an ICMP unreachable message is sent back to the source.
  3. The packet is silently discarded.
  4. The packet is flooded out all interfaces and an ICMP unreachable message is sent.
Correct answer: B
Question 2
Which of the following statements regarding distance vectors protocols are true?
(Choose two answers).
  1. RIPv1, RIPv2, and BGP are distance vector protocols.
  2. OSPF and IS-IS are distance vector protocols.
  3. Routing tables are exchanged between neighbors; however, no routing table is transmitted beyond the immediate neighbor.
  4. Distance vector protocols use the Dijkstra SPF algorithm.
  5. Routers that participate in distance vector routing protocols maintain full knowledge of distant routers and how they interconnect
Correct answer: AC
Question 3
In an IP datagram, which of the following fields identifies the receiving application?
  1. The protocol field of the transport layer header.
  2. The port field of the transport layer header.
  3. The protocol field of the network layer header.
  4. The port field of the network layer address.
Correct answer: B
Question 4
Static routing will be used in a network between a corporate head office, with many connected networks, and a branch office, with one connection to the head office. Which of the following best describes the likely configuration?
  1. The corporate head office router will have a default route and the branch site will have a more specific static route.
  2. The corporate head office router and the branch office router will both have specific static routes.
  3. The corporate head office router and the branch router will both have default routes.
  4. The corporate head office router will have a more specific static route and the branch office router will have a default route.
Correct answer: D
Question 5

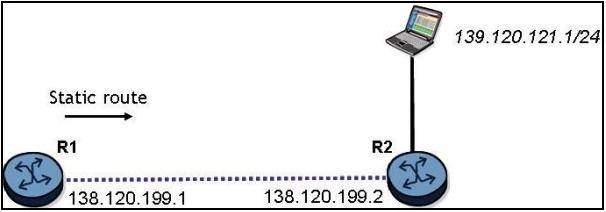

Click the exhibit button.

What is the command to configure a static route on the Nokia 7750 SR router R1 to reach the network behind router R2?
  1. configure router static-route 139.120.121.0/24 next-hop 138.120.199.2
  2. configure router static-route 139.120.121.0/24 next-hop 138.120.199.1
  3. configure router static-route 138.120.199.2/24 next-hop 138.120.199.1
  4. configure router static-route 139.120.121.0/24 next-hop 139.120.121.2
Correct answer: A
Question 6
There is an IP host with IP address 10.2.3.1. A static route is created, using the "configure router static-route 10.2.3.0/24 next-hop 10.1.2.1" command. What is the correct traceroute command to test this static route on an Nokia 7750 SR?
  1. traceroute 10.2.3.1
  2. traceroute 10.2.3.1 next-hop 10.1.2.1
  3. traceroute next-hop 10.1.2.1
  4. traceroute does not work on the Nokia 7750 SR.
  5. traceroute 10.1.2.1
Correct answer: A
Question 7

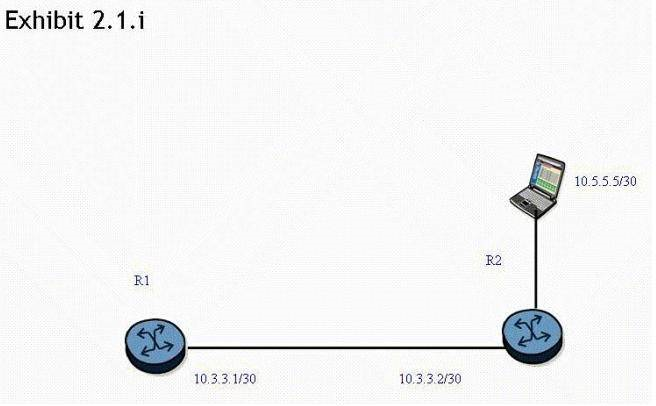

Click the exhibit button.

A static route is created on router R1 "using the "static-route 0.0.0.0/0 next-hop 10.3.3.2" command. What command can be used to test the static route on an Nokia 7750 SR?
  1. ping static 10.5.5.5
  2. ping static 0.0.0.0/0
  3. ping 10.5.5.5
  4. ping 0.0.0.0
Correct answer: C
Question 8
What is the default preference value for a static route in the Nokia 7750 SR?
  1. 0
  2. 5
  3. 10
  4. 15
Correct answer: B
Question 9
What are the default Hello and Dead timer intervals for OSPF on the Nokia 7750 SR?
  1. 5 and 15 seconds
  2. 10 and 30 seconds
  3. 5 and 20 seconds
  4. 10 and 40 seconds
Correct answer: D
Question 10

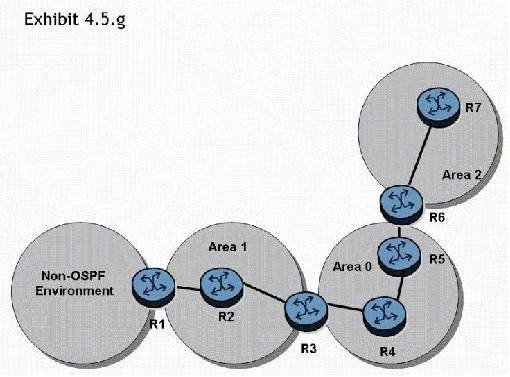

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?
  1. Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
  2. Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
  3. Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.
  4. Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.
Correct answer: D
