Demo Questions

Question 1
Which utility on Solaris 10 can be used to collect information about firmware and driver versions for a Qlogic QLAxxx/QLExxxx HBA?
  1. EMutil
  2. SANutil
  3. cfgadmin
  4. SANsurfer
  5. HBAnywhere
Correct answer: D
Question 2
An organization currently has a NetApp Fibre Channel block-based solution. With limited budget and resources, they want to create a new disaster recovery site that utilizes a NetApp solution. What would the optimal solution include?
  1. SnapMover and Fibre Channel at the disaster recovery site for all hosts
  2. SnapMirror and iSCSI at the disaster recovery site for all hosts
  3. Fibre Channel at both locations using ftp to replicate storage
  4. MetroCluster and NAS
Correct answer: B
Explanation:
Question 3
Which FC SAN topology provides the best performance and scalability?
  1. cascade
  2. core-edge
  3. full mesh
  4. partial mesh
Correct answer: B
Question 4

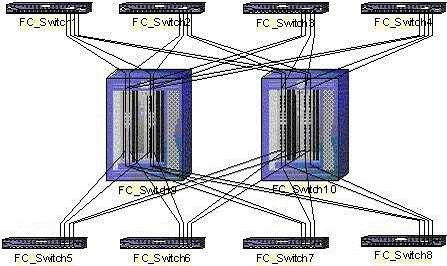

Based on the diagram shown, what is the appropriate FC switch topology?
  1. full mesh
  2. core-edge
  3. full cascade
  4. partial mesh
Correct answer: B
Question 5

Based on the diagram shown, what is the appropriate FC switch topology?
  1. core-edge
  2. full mesh
  3. partial mesh
  4. partial cascade
Correct answer: C
Explanation:
Question 6
A 200-GB LUN is created in an empty 500-GB volume with the volume guarantee option set to Volume. LUN reservation is enabled and the fractional reserve is set to 100 and scheduled snapshots are disabled. Directly after LUN creation, what is the maximum free space available in the volume?
  1. 200 GB
  2. 300 GB
  3. 400 GB
  4. 500 GB
Correct answer: B
Question 7
A 100-GB thinly provisioned LUN is allocated to a Windows host. 100 GB of data is written into the LUN. The current capacity utilization on the disk array as well as the host is 100%. 50 GB of data is deleted from the LUN. Space reclaimer has NOT been run. What is the current capacity utilization on both the host and the disk array?
  1. 50% on the host, 100% on the disk array
  2. 100% on the host, 50% on the disk array
  3. 50% on the host, 50% on the disk array
  4. 100% on the host, 100% on the disk array
Correct answer: A
Question 8
A customer has a four-node SUN cluster configuration. Each node has two, dual-ported HBAs. What is the minimum number of igroups that need to be created to map a LUN to the cluster?
  1. 1
  2. 2
  3. 4
  4. 8
Correct answer: A
Question 9
Which native GUI switch tool is used to manage Brocade switches and directors?
  1. SAN Manager
  2. Enterprise Fabric Services
  3. Device Manager
  4. Web Tools
Correct answer: D
Question 10
Which command will display which Brocade switches are connected into a fabric?
  1. fabricshow
  2. switchshow
  3. show fabric
  4. configshow
Correct answer: A
