MCIA-Level-1: MuleSoft Certified Integration Architect - Level 1

A global organization operates datacenters in many countries. There are private network links between these datacenters because all business data (but NOT metadata) must be exchanged over these private network connections.

The organization does not currently use AWS in any way.

The strategic decision has just been made to rigorously minimize IT operations effort and investment going forward.

What combination of deployment options of the Anypoint Platform control plane and runtime plane(s) best serves this organization at the start of this strategic journey?

MuleSoft-hosted Anypoint Platform control planeCloudHub Shared Worker Cloud in multiple AWS regions
MuleSoft-hosted Anypoint Platform control planeCustomer-hosted runtime plane in multiple AWS regions
MuleSoft-hosted Anypoint Platform control planeCustomer-hosted runtime plane in each datacenter
Anypoint Platform - Private Cloud EditionCustomer-hosted runtime plane in each datacenter

Correct answer: B

Anypoint Exchange is required to maintain the source code of some of the assets committed to it, such as Connectors, Templates, and API specifications.

What is the best way to use an organization's source-code management (SCM) system in this context?

Organizations need to point Anypoint Exchange to their SCM system so Anypoint Exchange can pull source code when requested by developers and provide it to Anypoint Studio
Organizations need to use Anypoint Exchange as the main SCM system to centralize versioning and avoid code duplication
Organizations can continue to use an SCM system of their choice for branching and merging, as long as they follow the branching and merging strategy enforced by Anypoint Exchange
Organizations should continue to use an SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching, and merging

Correct answer: B

An organization is designing an integration solution to replicate financial transaction data from a legacy system into a data warehouse (DWH).

The DWH must contain a daily snapshot of financial transactions, to be delivered as a CSV file. Daily transaction volume exceeds tens of millions of records, with significant spikes in volume during popular shopping periods.

What is the most appropriate integration style for an integration solution that meets the organization's current requirements?

API-led connectivity
Batch-triggered ETL
Event-driven architecture
Microservice architecture

Correct answer: D

A set of integration Mule applications, some of which expose APIs, are being created to enable a new business process. Various stakeholders may be impacted by this. These stakeholders are a combination of semi-technical users (who understand basic integration terminology and concepts such as JSON and XML) and technically skilled potential consumers of the Mule applications and APIs.

What is an effective way for the project team responsible for the Mule applications and APIs being built to communicate with these stakeholders using Anypoint Platform and its supplied toolset?

Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels oftechnical depth
Capture documentation about the Mule applications and APIs inline within the Mule integration flows and use Anypoint Studio's Export Documentation feature to provide an HTML version of this documentation to the stakeholders
Use Anypoint Design Center to implement the Mule applications and APIs and give the various stakeholders access to these Design Center projects, so they can collaborate and provide feedback
Use Anypoint Exchange to register the various Mule applications and APIs and share the RAML definitions with the stakeholders, so they can be discovered

Correct answer: D

A Mule application is being designed to do the following:

Step 1: Read a SalesOrder message from a JMS queue, where each SalesOrder consists of a header and a list of SalesOrderLineltems.

Step 2: Insert the SalesOrder header and each SalesOrderLineItem into different tables in an RDBMS.

Step 3: Insert the SalesOrder header and the sum of the prices of all its SalesOrderLineltems into a table in a different RDBMS.

No SalesOrder message can be lost and the consistency of all SalesOrder-related information in both RDBMSs must be ensured at all times.

What design choice (including choice of transactions) and order of steps addresses these requirements?

1. Read the JMS message (NOT in an XA transaction)
2. Perform EACH DB insert in a SEPARATE DB transaction
3. Acknowledge the JMS message
1. Read and acknowledge the JMS message (NOT in an XA transaction)
2. In a NEW XA transaction, perform BOTH DB inserts
1. Read the JMS message in an XA transaction
2. In the SAME XA transaction, perform BOTH DB inserts but do NOT acknowledge the JMS message
1. Read the JMS message (NOT in an XA transaction)
2. Perform BOTH DB inserts in ONE DB transaction
3. Acknowledge the JMS message

Correct answer: C

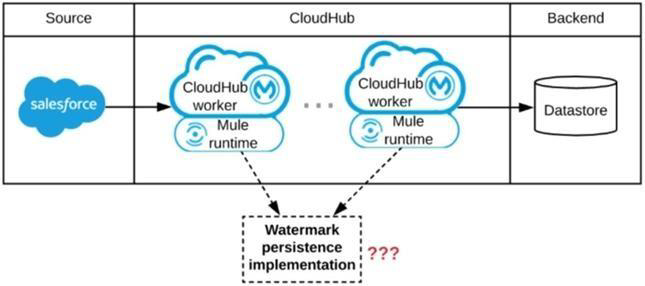

Refer to the exhibit. A Mule application is being designed to be deployed to several CloudHub workers. The Mule application's integration logic is to replicate changed Accounts from Salesforce to a backend system every 5 minutes.

A watermark will be used to only retrieve those Salesforce Accounts that have been modified since the last time the integration logic ran.

What is the most appropriate way to implement persistence for the watermark in order to support the required data replication integration logic?

Persistent Object Store
Persistent Cache Scope
Persistent Anypoint MQ Queue
Persistent VM Queue

Correct answer: A

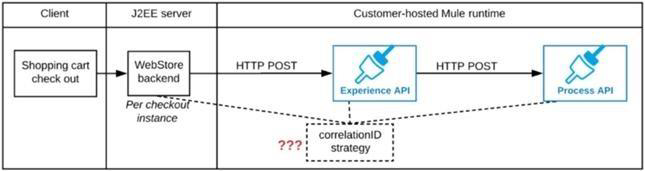

Refer to the exhibit. A shopping cart checkout process consists of a web store backend sending a sequence of API invocations to an Experience API, which in turn invokes a Process API. All API invocations are over HTTPS POST. The Java web store backend executes in a Java EE application server, while all API implementations are Mule applications executing in a customer-hosted Mule runtime.

End-to-end correlation of all HTTP requests and responses belonging to each individual checkout instance is required. This is to be done through a common correlation ID, so that all log entries written by the web store backend, Experience API implementation, and Process API implementation include the same correlation ID for all requests and responses belonging to the same checkout instance.

What is the most efficient way (using the least amount of custom coding or configuration) for the web store backend and the implementations of the Experience API and Process API to participate in end-to-end correlation of the API invocations for each checkout instance?

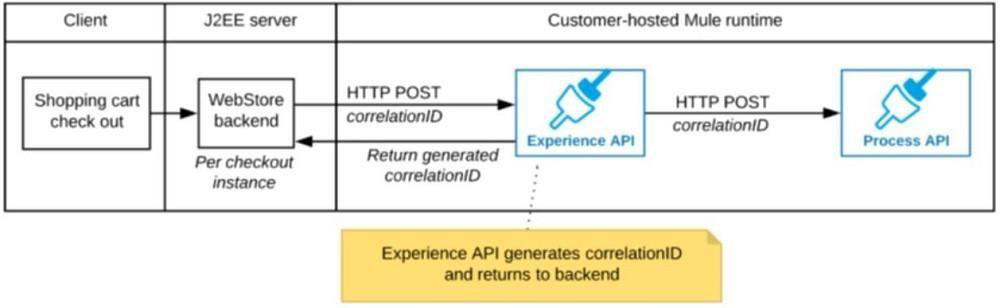

The Experience API implementation generates a correlation ID for each incoming HTTP request and passes it to the web store backend in the HTTP response, which includes it in all subsequent API invocations to the Experience APIThe Experience API implementation must be coded to also propagate the correlation ID to the Process API in a suitable HTTP request header

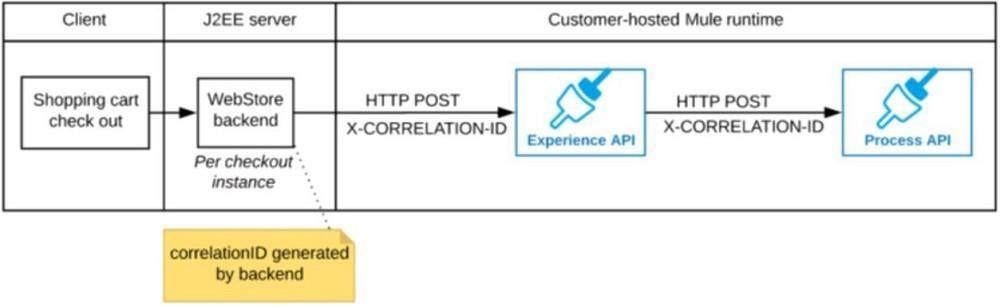

The web store backend generates a new correlation ID value at the start of checkout and sets it on the X-CORRELATION-ID HTTP request header in each API invocation belonging to that checkoutNo special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID

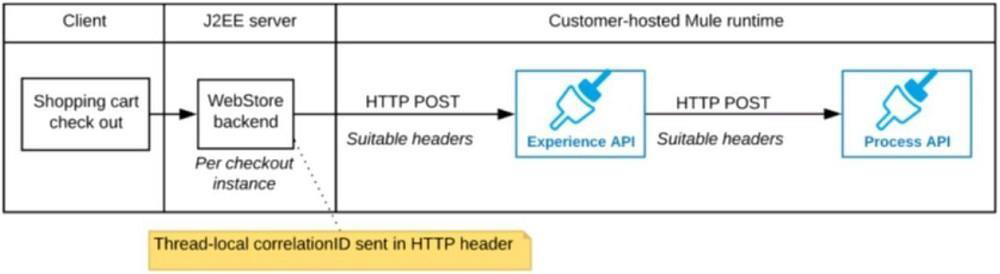

The web store backend, being a Java EE application, automatically makes use of the thread-local correlation ID generated by the Java EE application server and automatically transmits that to the Experience API using HTTP-standardheadersNo special code or configuration is included in the web store backend, Experience API, and Process API implementations to generate and manage the correlation ID

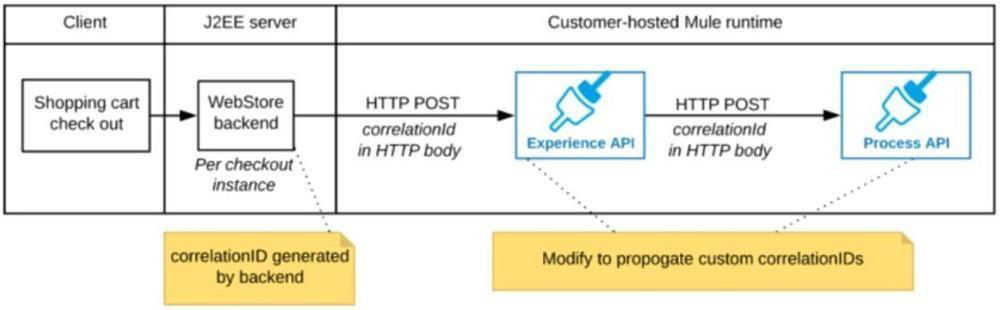

The web store backend sends a correlation ID value in the HTTP request body in the way required by the Experience APIThe Experience API and Process API implementations must be coded to receive the custom correlation ID in the HTTP requests and propagate it in suitable HTTP request headers

Correct answer: B

Mule application A receives a request Anypoint MQ message REQU with a payload containing a variable-length list of request objects. Application A uses the For Each scope to split the list into individual objects and sends each object as a message to an Anypoint MQ queue.

Service S listens on that queue, processes each message independently of all other messages, and sends a response message to a response queue.

Application A listens on that response queue and must in turn create and publish a response Anypoint MQ message RESP with a payload containing the list of responses sent by service S in the same order as the request objects originally sent in REQU.

Assume successful response messages are returned by service S for all request messages.

What is required so that application A can ensure that the length and order of the list of objects in RESP and REQU match, while at the same time maximizing message throughput?

Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU
Use a Scatter-Gather within the For Each scope to ensure response message order Configure the Scatter-Gather with a persistent object store
Keep track of the list length and all object indices in REQU, both in the For Each scope and in all communication involving service. Use persistent storage when creating RESP
Use an Async scope within the For Each scope and collect response messages in a second For Each scope in the order in which they arrive, then send RESP using this list of responses

Correct answer: B

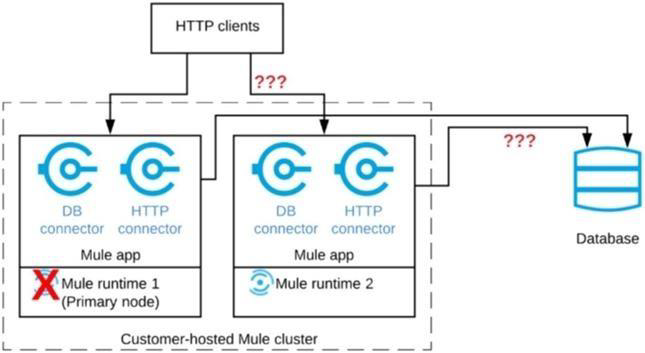

Refer to the exhibit. A Mule application is deployed to a cluster of two customer-hosted Mule runtimes. The Mule application has a flow that polls a database and another flow with an HTTP Listener.

HTTP clients send HTTP requests directly to individual cluster nodes.

What happens to database polling and HTTP request handling in the time after the primary (master) node of the cluster has failed, but before that node is restarted?

Database polling stops
All HTTP requests are rejected
Database polling stops
All HTTP requests continue to be accepted
Database polling continues
Only HTTP requests sent to the remaining node continue to be accepted
Database polling continues
All HTTP requests continue to be accepted, but requests to the failed node incur increased latency

Correct answer: A

What aspects of a CI/CD pipeline for Mule applications can be automated using MuleSoft-provided Maven plugins?

Import from API designer, compile, package, unit test, deploy, publish to Anypoint Exchange
Compile, package, unit test, validate unit test coverage, deploy
Compile, package, unit test, deploy, integration test
Compile, package, unit test, deploy, create associated API instances in API Manager

Correct answer: C

Explanation:

Reference: http://workshop.tools.mulesoft.com/modules/module7_lab4#step-2-configure-the-mule-maven-plugin
