70-413: Designing and Implementing a Server Infrastructure

You need to recommend which changes must be implemented to the network before you can deploy the new web application.

What should you include in the recommendation?

Change the forest functional level to Windows Server 2008 R2.
Upgrade the DNS servers to Windows Server 2012.
Change the functional level of both the domains to Windows Server 2008 R2.
Upgrade the domain controllers to Windows Server 2012.

Correct answer: D

Explanation:

Scenario:The domain controllers run Windows Server 2008 R2. The company is migrating to Windows Server 2012.

Scenario:

The domain controllers run Windows Server 2008 R2.

The company is migrating to Windows Server 2012.

You need to recommend a fault-tolerant solution for the VPN. The solution must meet the technical requirements.

What should you include in the recommendation?

Network adapter teaming
Network Load Balancing (NLB)
Failover Clustering
DirectAccess

Correct answer: B

Explanation:

Two servers to replace PA1 and AM1. The new servers will not have shared storage so we can’t use failover clustering.

You are planning the migration of research.contoso.com.

You need to identify which tools must be used to perform the migration.

Which tools should you identify?

Active Directory Migration Tool version 3.2 (ADMT v3.2) and Group Policy Management Console (GPMC)
Active Directory Federation Services (AD FS) and Microsoft Federation Gateway
Active Directory Migration Tool version 3.2 (ADMT v3.2) and Active Directory Federation Services (AD FS)
Active Directory Lightweight Directory Services (AD LDS) and Group Policy Management Console (GPMC)

Correct answer: A

Explanation:

Scenario: All of the users and the Group Policy objects (GPOs) in research.contoso.com will be migrated to contoso.com. Two domain controllers for the research.contoso.com domain. The domain controllers run Windows Server 2008 R2.

Scenario:

All of the users and the Group Policy objects (GPOs) in research.contoso.com will be migrated to contoso.com.

Two domain controllers for the research.contoso.com domain. The domain controllers run Windows Server 2008 R2.

You need to recommend a solution for DHCP logging. The solution must meet the technical requirement.

What should you include in the recommendation?

Event subscriptions
IP Address Management (IPAM)
DHCP audit logging
DHCP filtering

Correct answer: B

Explanation:

Scenario: A central log of the IP address leases and the users associated to those leases must be created.Feature description IPAM in Windows Server 2012 is a new built-in framework for discovering, monitoring, auditing, and managing the IP address space used on a corporate network. IPAM provides for administration and monitoring of servers running Dynamic Host Configuration Protocol (DHCP) and Domain Name Service (DNS). IPAM includes components for:Automatic IP address infrastructure discover)': IPAM discovers domain controllers, DHCP servers, and DNS servers in the domains you choose. You can enable or disable management of these servers by IPAM.Custom IP address space display, reporting, and management: The display of IP addresses is highly customizable and detailed tracking and utilization data is available. IPv4 and IPv6 address space is organized into IP address blocks, IP address ranges, and individual IP addresses. IP addresses are assigned built-in or user-defined fields that can be used to further organize IP address space into hierarchical, logical groups.Audit of server configuration changes and tracking of IP address usage: Operational events are displayed for the IPAM server and managed DHCP servers. IPAM also enables IP address tracking using DHCP lease events and user logon events collected from Network Policy Server (NPS), domain controllers, and DHCP servers. Tracking is available by IP address, client ID, host name, or user name.Monitoring and management of DHCP and DNS services: IPAM enables automated service availability monitoring for Microsoft DHCP and DNS servers across the forest. DNS zone health is displayed, and detailed DHCP server and scope management is available using the IPAM console.Reference: IP Address Management (IPAM) Overview

Scenario: A central log of the IP address leases and the users associated to those leases must be created.
Feature description

IPAM in Windows Server 2012 is a new built-in framework for discovering, monitoring, auditing, and managing the IP address space used on a corporate network. IPAM provides for administration and monitoring of servers running Dynamic Host Configuration Protocol (DHCP) and Domain Name Service (DNS). IPAM includes components for:

Automatic IP address infrastructure discover)': IPAM discovers domain controllers, DHCP servers, and DNS servers in the domains you choose. You can enable or disable management of these servers by IPAM.
Custom IP address space display, reporting, and management: The display of IP addresses is highly customizable and detailed tracking and utilization data is available. IPv4 and IPv6 address space is organized into IP address blocks, IP address ranges, and individual IP addresses. IP addresses are assigned built-in or user-defined fields that can be used to further organize IP address space into hierarchical, logical groups.
Audit of server configuration changes and tracking of IP address usage: Operational events are displayed for the IPAM server and managed DHCP servers. IPAM also enables IP address tracking using DHCP lease events and user logon events collected from Network Policy Server (NPS), domain controllers, and DHCP servers. Tracking is available by IP address, client ID, host name, or user name.
Monitoring and management of DHCP and DNS services: IPAM enables automated service availability monitoring for Microsoft DHCP and DNS servers across the forest. DNS zone health is displayed, and detailed DHCP server and scope management is available using the IPAM console.

Reference: IP Address Management (IPAM) Overview

After the planned upgrade to Windows Server 2012, you restore a user account from the Active Directory Recycle Bin.

You need to replicate the restored user account as quickly as possible.

Which cmdlets should you run?

Get-ADReplicationSite and Set-ADReplicationConnection
Get-ADReplicationAttributeMetadata and Compare-Object
Get-ADReplicationUpToDatenessVectorTable and Set-ADReplicationSite
Get ADDomainController and Sync-ADObject

Correct answer: D

Explanation:

* Scenario: All of the domain controllers are global catalog servers. The FSMO roles were not moved since the domains were deployed. * The Get-ADDomainController cmdlet gets the domain controllers specified by the parameters. You can get domain controllers by setting the Identity, Filter or Discover parameters. * The Sync-ADObject cmdlet replicates a single object between any two domain controllers that have partitions in common. The two domain controllers do not need to be direct replication partners. It can also be used to populate passwords in a read-only domain controller (RODC) cache.

* Scenario:

All of the domain controllers are global catalog servers.

The FSMO roles were not moved since the domains were deployed.

* The Get-ADDomainController cmdlet gets the domain controllers specified by the parameters.

You can get domain controllers by setting the Identity, Filter or Discover parameters.

* The Sync-ADObject cmdlet replicates a single object between any two domain controllers that have partitions in common. The two domain controllers do not need to be direct replication partners. It can also be used to populate passwords in a read-only domain controller (RODC) cache.

You implement a new virtualized print server that runs Windows Server 2012.

You need to migrate the print queues.

Which tool should you use?

Windows Server Migration Tools
Active Directory Migration Tool (ADMT)
Print Management
Computer Management

Correct answer: C

Explanation:

* Scenario: Migrate the existing print queues to virtualized instances of Windows Server 2012.To manage the migration process, use one of the following:The Printer Migration Wizard, which you access through Print Management, a snap-in in Microsoft Management Console (MMC). The Printbrm.exe command-line tool. You can perform the migration locally or remotely, and from either a client computer or server. Important As a best practice, run the Printer Migration Wizard or Printbrm.exe from a computer running Windows Server 2012

* Scenario: Migrate the existing print queues to virtualized instances of Windows Server 2012.

To manage the migration process, use one of the following:

The Printer Migration Wizard, which you access through Print Management, a snap-in in Microsoft Management Console (MMC).
The Printbrm.exe command-line tool.

You can perform the migration locally or remotely, and from either a client computer or server.

Important

As a best practice, run the Printer Migration Wizard or Printbrm.exe from a computer running Windows Server 2012

What method should you use to deploy servers?

WDS
AIK
ADK
EDT

Correct answer: A

Explanation:

WDS is a server role that enables you to remotely deploy Windows operating systems. You can use it to set up new computers by using a network-based installation. This means that you do not have to install each operating system directly from a CD, USB drive, or DVD.

You need to recommend a trust model.

What should you include in the recommendation?

A one-way, forest trust that has selective authentication.
A one-way, external trust
A two-way, external trust
A one-way, forest trust that has domain-wide authentication.

Correct answer: A

Explanation:

From case study:Users in the Montreal office must only be allowed to access shares that are located on File01 and File02. The Montreal users must be prevented from accessing any other servers in the proseware.com forest regardless of the permissions on the resources.

From case study:

Users in the Montreal office must only be allowed to access shares that are located on File01 and File02. The Montreal users must be prevented from accessing any other servers in the proseware.com forest regardless of the permissions on the resources.

You need to recommend a deployment method for Proseware.

What is the best approach to achieve the goal? More than one answer choice may achieve the goal. Select the BEST answer.

A WDS Deployment server and Multicast transmissions
A WDS Deployment server and Unicast transmissions
A WDS Transport server and Multicast transmissions
A WDS Transport server and Unicast transmissions

Correct answer: A

Explanation:

Consider implementing multicasting if your organization:Has network routers that support multicasting. Is a large company that requires many concurrent client installations. Wants to use network bandwidth efficiently. This is because with this feature, images are sent over the network only once, and you can specify limitations (for example, to only use 10 percent of your bandwidth). Has enough disk space on client computers for the image to be downloaded.

Consider implementing multicasting if your organization:

Has network routers that support multicasting.
Is a large company that requires many concurrent client installations.
Wants to use network bandwidth efficiently. This is because with this feature, images are sent over the network only once, and you can specify limitations (for example, to only use 10 percent of your bandwidth).
Has enough disk space on client computers for the image to be downloaded.

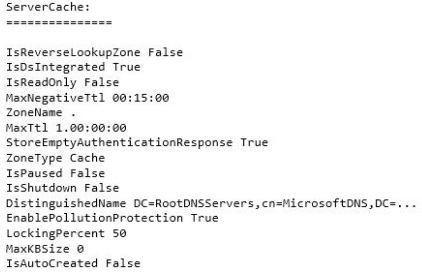

You run the Get-DNSServer cmdlet on DC01 and receive the following output:

You need to recommend changes to DC01. Which attribute should you recommend modifying?

EnablePollutionProtection
isReadOnly
Locking Percent
ZoneType

Correct answer: C

Explanation:

Scenario: The DNS servers must be prevented from overwriting the existing DNS entries that have been stored in cache.Cache locking is configured as a percent value. For example, if the cache locking value is set to 50, then the DNS server will not overwrite a cached entry for half of the duration of the TTL. By default, the cache locking percent value is 100. This means that cached entries will not be overwritten for the entire duration of the TTL. The cache locking value is stored in the CacheLockingPercent registry key. If the registry key is not present, then the DNS server will use the default cache locking value of 100.

Scenario: The DNS servers must be prevented from overwriting the existing DNS entries that have been stored in cache.
Cache locking is configured as a percent value. For example, if the cache locking value is set to 50, then the DNS server will not overwrite a cached entry for half of the duration of the TTL. By default, the cache locking percent value is 100. This means that cached entries will not be overwritten for the entire duration of the TTL. The cache locking value is stored in the CacheLockingPercent registry key. If the registry key is not present, then the DNS server will use the default cache locking value of 100.
