Demo Questions

Question 1
In Huawei's smart roaming solution, which of the following methods can be used by a WAC to discover and maintain neighboring AP entries of STAs? (Select All that Apply)
  1. The WAC obtains such entries using 802. 11v.
  2. The AP listens to the Probe frames sent by STAs.
  3. The AP periodically and proactively scans neighboring APs of STAs.
  4. STAs proactively report neighboring AP information.
Correct answer: BC
Explanation:
In Huawei's smart roaming solution, the WAC can discover and maintain neighboring AP entries of STAs by using two methods: passive listening and active scanning. Passive listening means that the AP listens to theProbe frames sent by STAs and reports them to the WAC. Active scanning means that the AP periodically and proactively scans neighboring APs of STAs and reports them to the WAC.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/smartroaming
In Huawei's smart roaming solution, the WAC can discover and maintain neighboring AP entries of STAs by using two methods: passive listening and active scanning. Passive listening means that the AP listens to the
Probe frames sent by STAs and reports them to the WAC. Active scanning means that the AP periodically and proactively scans neighboring APs of STAs and reports them to the WAC.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/smartroaming
Question 2
Which of the following statements about the home agent are true? (Select All that Apply)
  1. The home agent communicates with the gateway on the STAs1 home network at Layer 2.
  2. The home agent communicates with the gateway on the STAs' home network at Layer 3.
  3. A home AP can function as a home agent of STAs.
  4. A home WAC can function as a home agent of STAs.
Correct answer: BD
Explanation:
The home agent is a device that communicates with the gateway on the STAs' home network at Layer 3 and maintains the binding entries of STAs' home addresses and care-of addresses. A home WAC can function asa home agent of STAs, while a home AP cannot.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/mobile-ip
The home agent is a device that communicates with the gateway on the STAs' home network at Layer 3 and maintains the binding entries of STAs' home addresses and care-of addresses. A home WAC can function as
a home agent of STAs, while a home AP cannot.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/mobile-ip
Question 3
Which of the following types of non-Wi-R devices can be identified by Huawei APs? (Select All that Apply)
  1. Bluetooth device
  2. ZigBee device
  3. Game controller
  4. 2.4 GHz wireless video and audio transmitter
Correct answer: ABD
Explanation:
Huawei APs can identify non-Wi-Fi devices that operate in the 2.4 GHz frequency band, such as Bluetooth devices, ZigBee devices, game controllers, wireless video and audio transmitters, microwave ovens, cordlessphones, and baby monitors.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/non-wi-fidevice-identification
Huawei APs can identify non-Wi-Fi devices that operate in the 2.4 GHz frequency band, such as Bluetooth devices, ZigBee devices, game controllers, wireless video and audio transmitters, microwave ovens, cordless
phones, and baby monitors.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/non-wi-fidevice-identification
Question 4
Which of the following advantages does BSS coloring provide in Wi-Fi 6? (Select All that Apply)
  1. Higher packet rate on the air interface
  2. Enhanced encryption on the air interface
  3. More efficient channel use
  4. Higher concurrency in high-density scenarios
Correct answer: ACD
Explanation:
BSS coloring is a feature introduced in Wi-Fi 6 that assigns different colors to different BSSs to reduce co-channel interference. BSS coloring provides the following advantages:Higher packet rate on the air interface: BSS coloring reduces collisions between packets from different BSSs on the same channel, improving packet transmission efficiency.More efficient channel use: BSS coloring allows spatial reuse of channels by different BSSs, increasing channel utilization.Higher concurrency in high-density scenarios: BSS coloring reduces interference among neighboring APs and improves network performance in high-density scenarios.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/bsscoloring
BSS coloring is a feature introduced in Wi-Fi 6 that assigns different colors to different BSSs to reduce co-channel interference. BSS coloring provides the following advantages:
Higher packet rate on the air interface: BSS coloring reduces collisions between packets from different BSSs on the same channel, improving packet transmission efficiency.
More efficient channel use: BSS coloring allows spatial reuse of channels by different BSSs, increasing channel utilization.
Higher concurrency in high-density scenarios: BSS coloring reduces interference among neighboring APs and improves network performance in high-density scenarios.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/bsscoloring
Question 5
An AP may preferentially use the BTM mode to steer some STAs. With which of the following protocols are such STAs compliant?
  1. 802.11k
  2. 802.11i
  3. 802.11r
  4. 802.11v
Correct answer: D
Explanation:
An AP may preferentially use the BTM mode to steer some STAs that are compliant with 802.11v protocol. BTM stands for BSS Transition Management, which is a feature defined in 802.11v protocol that allows an APto send a request to a STA to switch to another BSS.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/btm
An AP may preferentially use the BTM mode to steer some STAs that are compliant with 802.11v protocol. BTM stands for BSS Transition Management, which is a feature defined in 802.11v protocol that allows an AP
to send a request to a STA to switch to another BSS.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/btm
Question 6

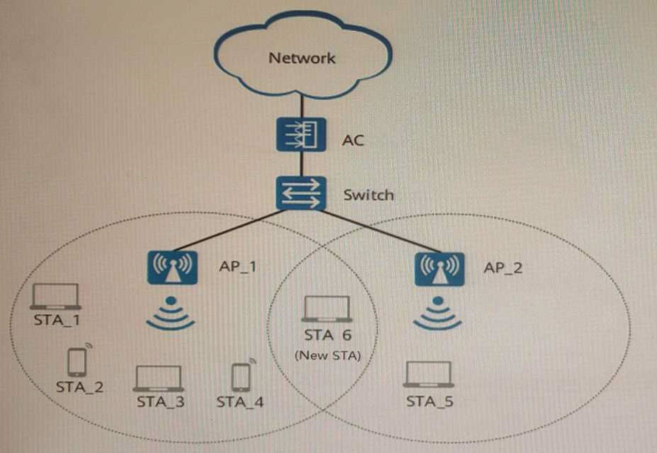

As shown in the figure, STA_1 through STA_4 are associated with AP_1, and STA_5 is associated with AP_2. Assuming that the load balancing threshold is 2, the load difference threshold is 25%, and API and AP2
support a maximum of 10 STAs, which of the following statements are true? (Select All that Apply)

  1. The load percentage of AP_1 is 40%, and that of AP_2 is 10%.
  2. The load balancing mechanism needs to be enabled. Then some STAs are steered from AP_1 to AP__2.
  3. If load balancing is performed, the load percentage of AP_1 changes to 30%.
  4. The minimum load percentage is 10%, which is greater than the load difference threshold.Therefore, load balancing needs to be enabled.
Correct answer: AB
Explanation:
The load percentage of an AP is calculated by dividing the number of associated STAs by the maximum number of STAs supported by the AP. In this case, the load percentage of AP_1 is 4/10 = 40%, and that of AP_2 is1/10 = 10%. The load balancing mechanism needs to be enabled to balance the load between AP_1 and AP_2. Then some STAs are steered from AP_1 to AP_2 based on the load balancing threshold and the loaddifference threshold.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/loadbalancing
The load percentage of an AP is calculated by dividing the number of associated STAs by the maximum number of STAs supported by the AP. In this case, the load percentage of AP_1 is 4/10 = 40%, and that of AP_2 is
1/10 = 10%. The load balancing mechanism needs to be enabled to balance the load between AP_1 and AP_2. Then some STAs are steered from AP_1 to AP_2 based on the load balancing threshold and the load
difference threshold.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/loadbalancing
Question 7
In a multicast solution, there must be reachable unlcast routes between multicast sources and receivers.
  1. True
  2. False
Correct answer: A
Explanation:
In a multicast solution, there must be reachable unicast routes between multicast sources and receivers, because multicast routing protocols use unicast routing information to build multicast forwarding trees.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/multicast
In a multicast solution, there must be reachable unicast routes between multicast sources and receivers, because multicast routing protocols use unicast routing information to build multicast forwarding trees.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/multicast
Question 8
After multicast-to-unicast conversion is enabled on an AP's air interface, which of the followings is the destination MAC address of multicast packets sent over the air interface?
  1. Multicast MAC address
  2. MAC address of the multicast source
  3. Broadcast MAC address
  4. MAC address of a STA
Correct answer: D
Explanation:
After multicast-to-unicast conversion is enabled on an AP's air interface, the destination MAC address of multicast packets sent over the air interface is changed to the MAC address of a STA that has joined themulticast group. This improves the transmission efficiency and reliability of multicast packets.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/multicastto-unicast-conversion
After multicast-to-unicast conversion is enabled on an AP's air interface, the destination MAC address of multicast packets sent over the air interface is changed to the MAC address of a STA that has joined the
multicast group. This improves the transmission efficiency and reliability of multicast packets.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/multicastto-unicast-conversion
Question 9
Assume that a large enterprise needs to deploy a WLAN to provide wireless access for both employees and guests. However, guest data may pose security threats on the network. Which of the following networking
modes is applicable to this scenario?
  1. Navi WAC Networking
  2. Leader AP networking
  3. Mesh networking
  4. Fat AP networking
Correct answer: A
Explanation:
Navi WAC networking is a networking mode that uses a WLAN Access Controller (WAC) to manage and control APs. It can provide different authentication and security policies for different user groups, such as employees and guests. Guest data is isolated from the internal network to prevent security threats.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100064352/9aadccc0/navi-wacnetworking
Navi WAC networking is a networking mode that uses a WLAN Access Controller (WAC) to manage and control APs. It can provide different authentication and security policies for different user groups, such as employees and guests. Guest data is isolated from the internal network to prevent security threats.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100064352/9aadccc0/navi-wacnetworking
Question 10
Which of the following methods are used in IPsec to ensure secure transmission of service data on the network through encryption and authentication?
  1. The receiver verifies the identity of the sender.
  2. The receiver rejects old or duplicate packets in order to prevent attacks initiated by malicious users who resend sniffed packets,
  3. The sender verifies the identity of the receiver.
  4. Data integrity is verified.
Correct answer: AD
Explanation:
IPsec uses authentication headers (AHs) and encapsulating security payloads (ESPs) to ensure secure transmission of service data on the network. AHs provide authentication and integrity verification for the senderand the receiver, while ESPs provide encryption and optional authentication for the data.Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/ipsec
IPsec uses authentication headers (AHs) and encapsulating security payloads (ESPs) to ensure secure transmission of service data on the network. AHs provide authentication and integrity verification for the sender
and the receiver, while ESPs provide encryption and optional authentication for the data.
Reference:https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/ipsec
