Demo Questions

Question 1
Which guidelines should an architect use to determine how many AirWave servers to recommend?
  1. One server should be deployed on every subnet with an infrastructure device.
  2. One server is recommended for the base features and one server each for add-on features such as Clarity.
  3. One server should be dedicated to the wired infrastructure and one server to the wireless infrastructure.
  4. One server should monitor and manage up to about 4,000 infrastructure devices.
Correct answer: A
Question 2

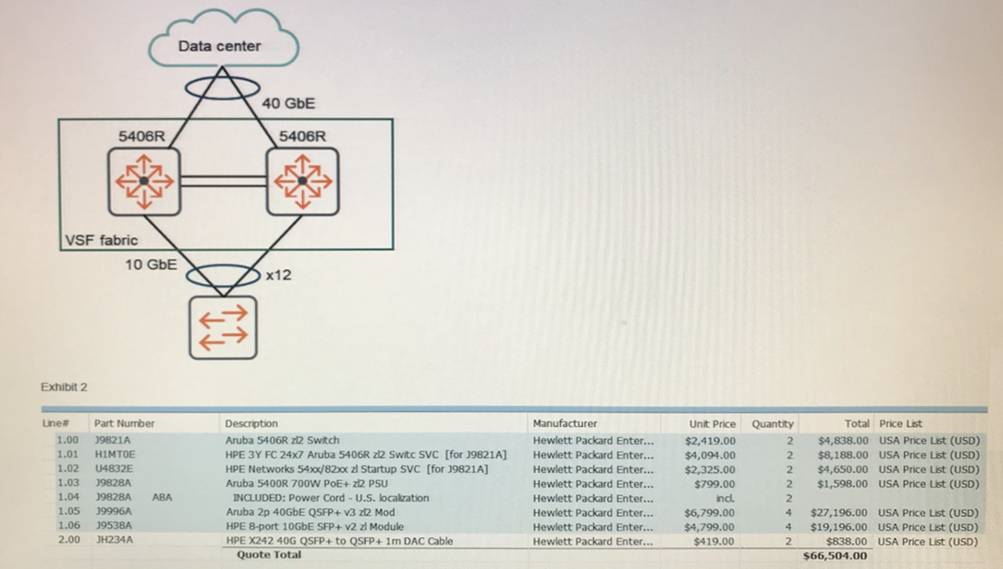

Refer to the exhibit.
Exhibit 1 shows the logical plan, and Exhibit 2 shows the BOM created with IRIS. An architect plans to propose two 5406Rzl switches as a VSF fabric for a campus network core. Which issue with the plan should the architect correct?

  1. Add two QSPF+ MP0 SR4 transceivers.
  2. Change the v2 modules to v3 modules.
  3. Add stacking modules and cables.
  4. Change the power supply type.
Correct answer: B
Question 3
An architect proposes four 7210 Mobility Controllers (MCs) to support about 1,500 client APs. The customer environment will have a maximum of about 20,000 wireless clients. The customer wants hardware MMs with an active and standby deployment. What is the minimum solution that meets the customer requirements?
  1. two MM-HW-10K appliances
  2. two MM-HW-5K appliances
  3. four MM HW-5K appliances
  4. four MM HW-10K appliances
Correct answer: B
Question 4
A financial institution has an Aruba wireless system. Each floor is 19 meters by 23 meters (200 feet by 250 feet) and has 20 APs. The organization now requires dedicated Air Monitors (AMs). About how many AMs should the architect recommend per floor?
  1. about 1 or 2 per floor
  2. about 3 to 5 per floor
  3. about 10 to 12 per floor
  4. about 16 to 20 per floor
Correct answer: A
Question 5
An architect needs to plan the RF coverage. Which application has the greatest potential impact on RF design?
  1. print
  2. email
  3. voice
  4. secure web browsing
Correct answer: D
Question 6
For which scenario should an architect recommend Aruba Central Managed Portal (MSP)?
  1. for a service provider who needs to monitor multi-vendor environments
  2. for an enterprise that needs to manage data center services together with the network
  3. for a service provider who needs to manage multiple customer networks
  4. for an enterprise with many branches that needs to manage services centrally
Correct answer: D
Question 7
The customer has an office environment with users who have laptops that can connect with wired or wireless. Users also bring one or two of their own devices. An architect creates a proposal with Aruba AP-325s, 7210 Mobility Controllers (MCs), a Mobility Master (MM), and Aruba 2930M switches at the access layer to support the laptops and APs.
The architect plans to recommend 802.1X authentication without tunneled node on Aruba 2930M switch ports that connect to laptops. What is one advantage of this form of authentication?
  1. ensures that Aruba firewall policies apply to wired user traffic.
  2. prevents users from connection attempts with more than three devices
  3. enables user access control and ensures only authorized users connect.
  4. provides a second layer of protection for wireless users at the internal perimeter
Correct answer: C
Question 8
An architect proposes an Aruba solution with a hardware Mobility Master (MM) to a customer. The customer has a disaster recovery site which is connected to the main site at Layer 3. The customer requires the MM to remain available in case of a total site failure.
Which plan meets the customer requirements?
  1. Deploy a hardware MM to the disaster recovery site and set up VRRP between them.
  2. Deploy a hardware MM to the disaster recovery site and set its IP address as the standby master for MCs.
  3. Deploy the virtual MM (VMM) to the disaster recovery site and set the VMM IP address to the same address as the hardware MM.
  4. Deploy the virtual MM (VMM) to the disaster recovery site and configure clustering on the hardware and software appliances.
Correct answer: A
Question 9
A customer needs a networking solution that supports their Microsoft Skype for Business Unified Communications (UC) solution. The architect plans to use multiple Aruba APs, switches, and controllers.
The customer wants real time statistics and assessment of call quality. Which component should the architect include to provide these services?
  1. Aruba AirWare
  2. Aruba Central
  3. Aruba Mobility Master (MM)
  4. Aruba ClearPass
Correct answer: B
Question 10
An architect plans 12 APs for an auditorium that is 325 square meters (3, 498 square feet). Each AP has one 2.4 GHz radio and one 5 GHz radio. Both types of radios use 20 MHz channels.
Assume that DFS channels can be used in this design. How many 5 GHz collision domains does this design provide?
  1. 1
  2. 6
  3. 12
  4. 25
Correct answer: B
