Demo Questions

Question 1

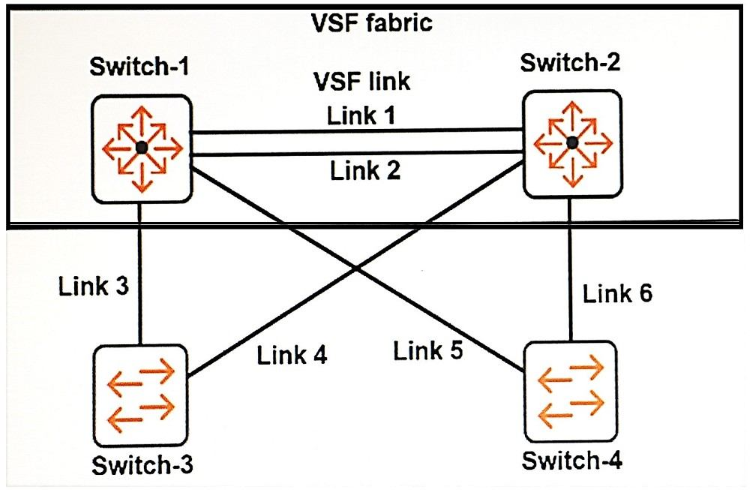

Refer to the exhibit.

Which links can be combined in the same link aggregation?
  1. Links 3 and 4
  2. Links 3 and 5
  3. Links 3 and 6
  4. Links 4 and 6
Correct answer: A
Explanation:
We can also aggregate link 5 and 6
We can also aggregate link 5 and 6
Question 2

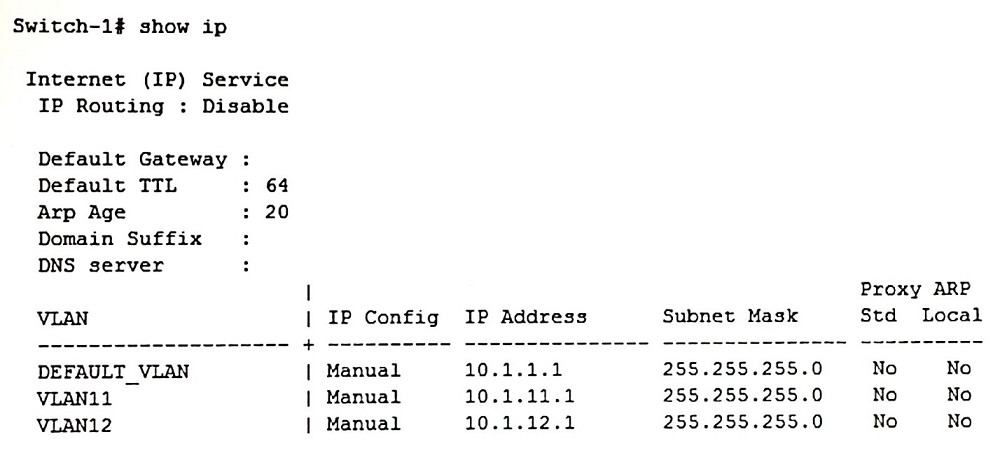

Refer to the exhibit.

What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?
  1. Enable proxy ARP.
  2. Enable IP routing.
  3. Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.
  4. Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.
Correct answer: B
Question 3
How many operating system image files can a network administrator load on an ArubaOS switch?
  1. two
  2. three
  3. four
  4. unlimited
Correct answer: A
Question 4

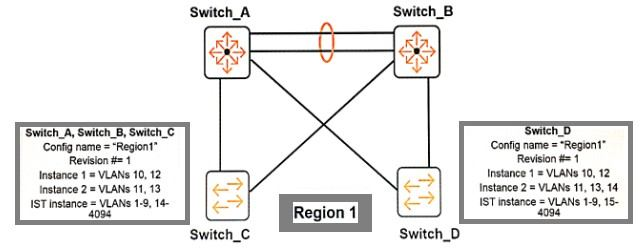

Refer to the exhibit.

Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2.
How does this affect the MSTP topology?
  1. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_C and Switch_D.
  2. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_D
  3. All connectivity is lost, both uplinks are blocked on Switch_D.
  4. A Layer 2 loop exists and will cause sporadic connectivity issues.
Correct answer: B
Question 5

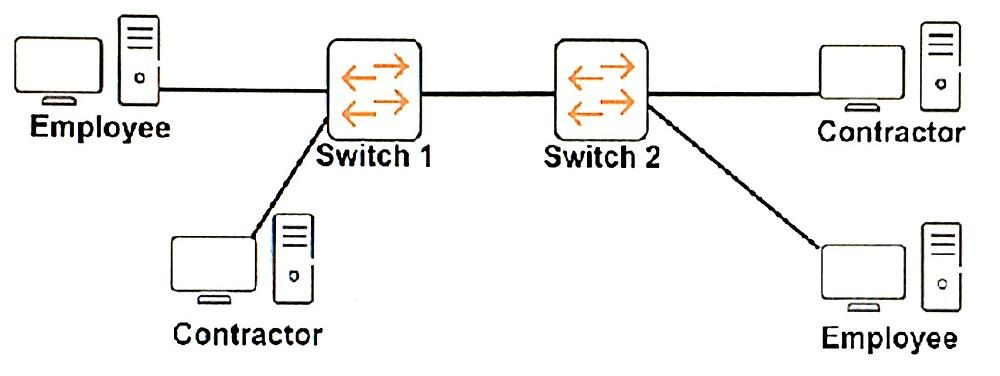

Refer to the exhibit.

The network administrator wants to place contractor clients and employee clients in different broadcast domains.
How should the administrator achieve this goal?
  1. Add a router in between Switch 1 and Switch 2. Configure a different subnet on each router interface.
  2. Create two MSTP instances on each switch. Assign ports connected to contractor clients to one instance and ports connected to employee clients to the other instance.
  3. Assign the switch ports connected to contractor clients to one VLAN and ports connected to employee clients to another VLAN. Extend the VLANs between the switches.
  4. Create two device profiles. Apply one profile to ports connected to contractor clients, and apply the other profile to ports connected to employee clients.
Correct answer: C
Question 6

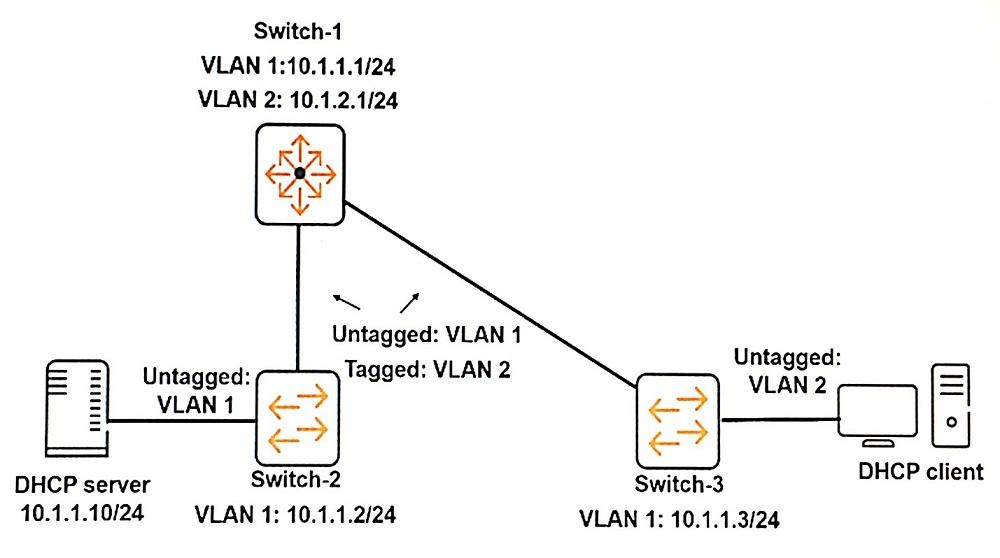

Refer to the exhibit.

All of the switches shown in the exhibit are ArubaOS switches.
Where should the network administrator configure an IP helper address of 10.1.1.10?
  1. on VLAN 2 on Switch-1
  2. on VLAN 2 on Switch-3
  3. on VLAN 1 on Switch-1
  4. on VLAN 1 on Switch-2
Correct answer: A
Question 7
What is the relationship between a wireless client’s data rate and the throughput for the client’s traffic?
  1. The throughput is 90 percent of the data rate.
  2. The throughput is equal to the data rate multiplied by the connection time, minus the headers’ bytes.
  3. The throughput is less than the data rate and also depends on factors such as number of clients in the cell.
  4. The data rate and the throughput are equivalent.
Correct answer: B
Question 8

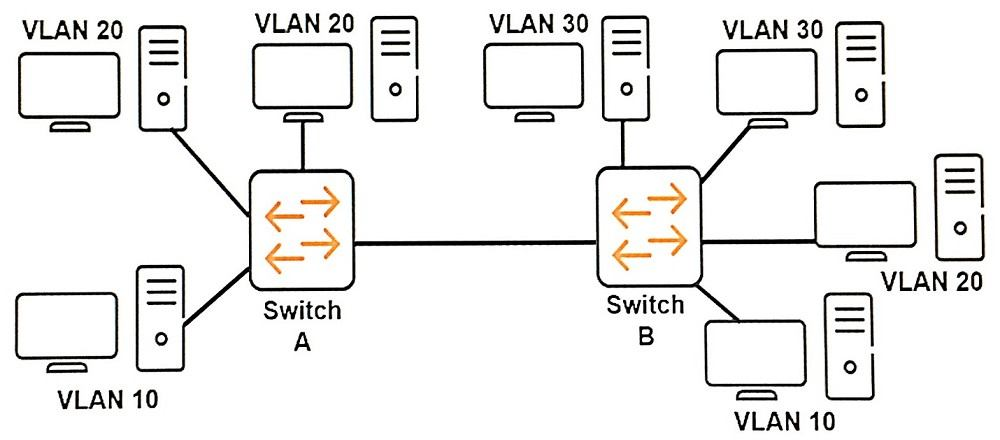

Refer to the exhibit.

The network consists of two ArubaOS switches with routing disabled.
How should the network administrator configure the link between Switch A and Switch B to ensure that all hosts can communicate to all the other hosts within their respective VLANs?
  1. tagged for VLAN 20 and tagged for VLAN 30
  2. untagged for VLAN 10 and tagged for VLAN 30
  3. tagged for VLAN 10 and tagged for VLAN 20
  4. untagged for VLAN 10, untagged for VLAN 20, and tagged for VLAN 30
Correct answer: C
Question 9
A company has ArubaOS switches that are already configured to support the network. The company now wants to use Aruba AirWave to manage the switches. The network administrator creates a new group on Aruba AirWave, and then discovers several ArubaOS switches that should belong to this group.
What is the best practice for the initial authorization of the switches in AirWave?
  1. Authorize the switches in Monitor + Firmware Updates only mode.
  2. Authorize the switches and immediately change the scan set credentials to match the credentials on the switches.
  3. Authorize the switches and immediately change the global communication settings to match the credentials on the switches.
  4. Authorize the switches in Managed Read/Write mode.
Correct answer: D
Question 10
A network administrator configures MSTP on an ArubaOS switch. The administrator wants to ensure that this switch is always the root for instance 1.
What should the administrator do to accomplish this?
  1. Specify priority 15 for spanning tree instance 1.
  2. Specify spanning tree cost 0 on all switch ports that connect to other switches that use instance 1.
  3. Specify priority 0 for spanning tree instance 1.
  4. Specify spanning tree cost 15 on all switch ports that connect to other switches that use instance 1.
Correct answer: C
