Demo Questions

Question 1

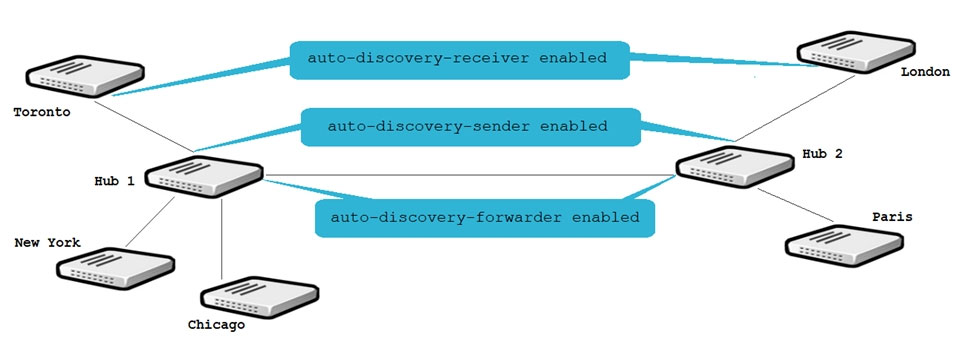

Refer to the exhibit.
Multiple IPsec VPNs are formed between two hub-and-spokes groups, and site-to-site between Hub 1 and Hub 2. The administrator configured ADVPN on the dual regions topology.
Which two statements are correct if a user in Toronto sends traffic to London? (Choose two.)
  1. Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.
  2. The first packets from Toronto to London are routed through Hub 1 then to Hub 2.
  3. London generates an IKE information message that contains the Toronto public IP address.
  4. Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VPN.
Correct answer: BD
Question 2
Refer to exhibits.

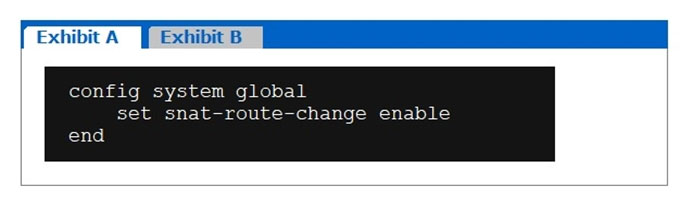

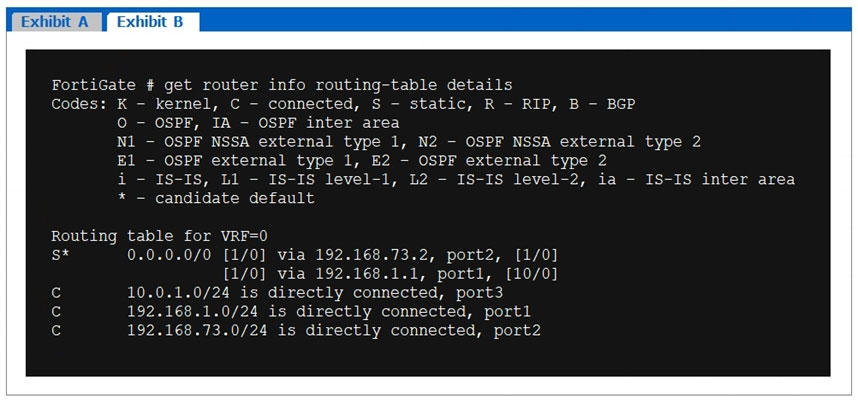

Exhibit A shows the source NAT global setting and exhibit B shows the routing table on FortiGate.
Based on the exhibits, which two statements about increasing the port2 interface priority to 20 are true? (Choose two.)
  1. All the existing sessions that do not use SNAT will be flushed and routed through port1.
  2. All the existing sessions will continue to use port2, and new sessions will use port1.
  3. All the existing sessions using SNAT will be flushed and routed through port1.
  4. All the existing sessions will be blocked from using port1 and port2.
Correct answer: AC
Question 3
Which components make up the secure SD-WAN solution?
  1. FortiGate, FortiManager, FortiAnalyzer, and FortiDeploy
  2. Application, antivirus, and URL, and SSL inspection
  3. Datacenter, branch offices, and public cloud
  4. Telephone, ISDN, and telecom network
Correct answer: A
Question 4

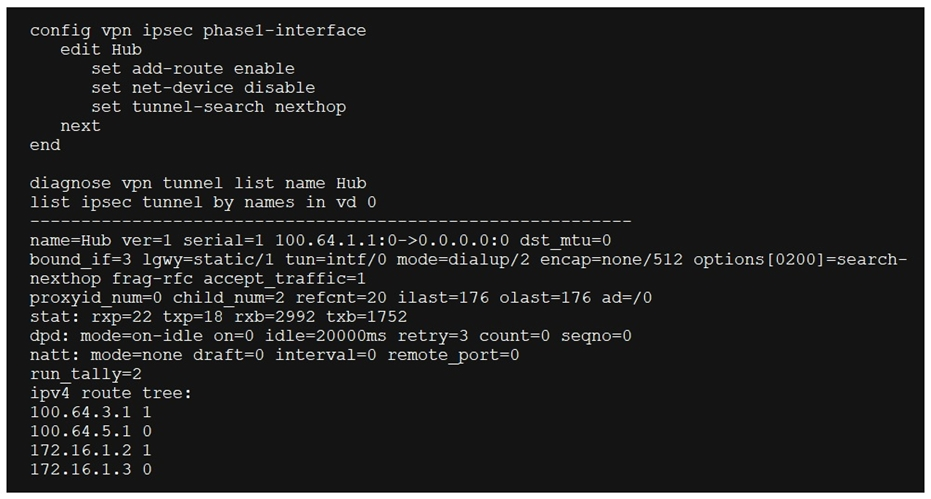

Refer to the exhibit.
Which two statements about the status of the VPN tunnel are true? (Choose two.)
  1. There are separate virtual interfaces for each dial-up client.
  2. VPN static routes are prevented from populating the FortiGate routing table.
  3. FortiGate created a single IPsec virtual interface that is shared by all clients.
  4. 100.64.3.1 is one of the remote IP address that comes through index interface 1.
Correct answer: CD
Question 5
Refer to exhibits.

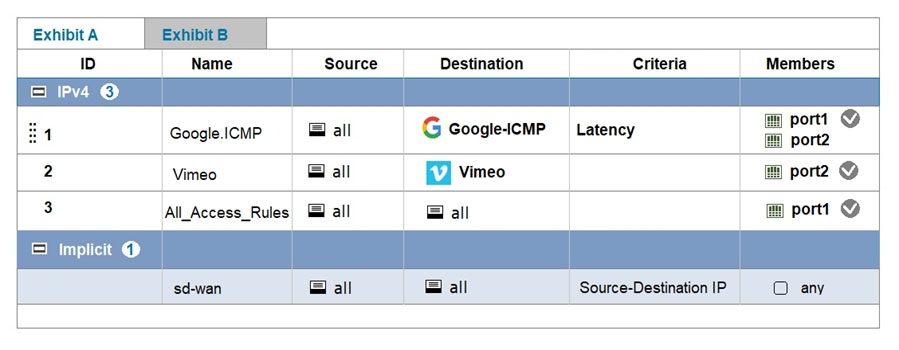

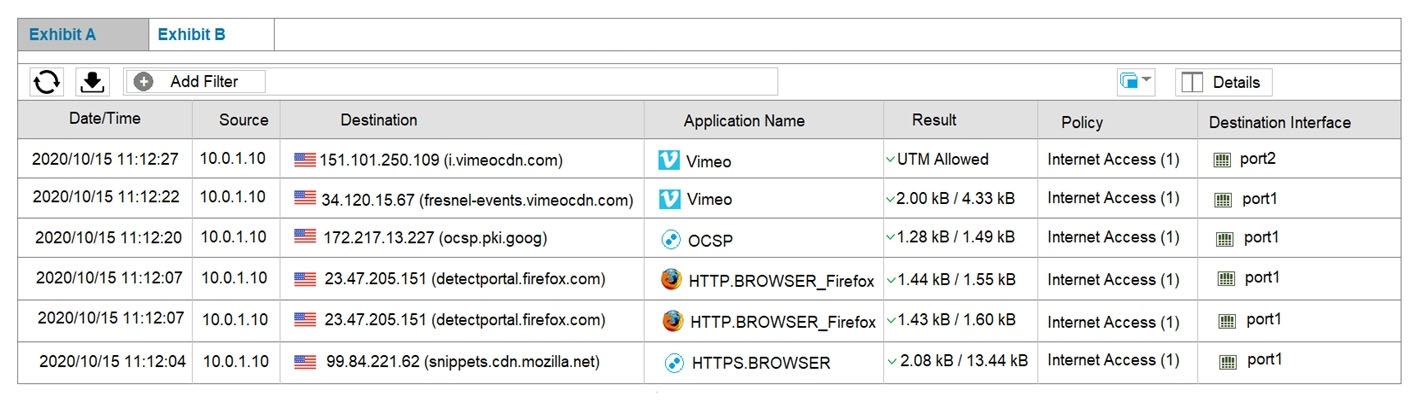

Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic.
Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)
  1. The implicit rule overrides all other rules because parameters widely cover sources and destinations.
  2. SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom.
  3. The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces.
  4. The initial session of an application goes through a learning phase in order to apply the correct rule.
Correct answer: BD
Question 6
What are the two minimum configuration requirements for an outgoing interface to be selected once the SD-WAN logical interface is enabled? (Choose two.)
  1. Specify outgoing interface routing cost.
  2. Configure SD-WAN rules interface preference.
  3. Select SD-WAN balancing strategy.
  4. Specify incoming interfaces in SD-WAN rules.
Correct answer: AB
Question 7

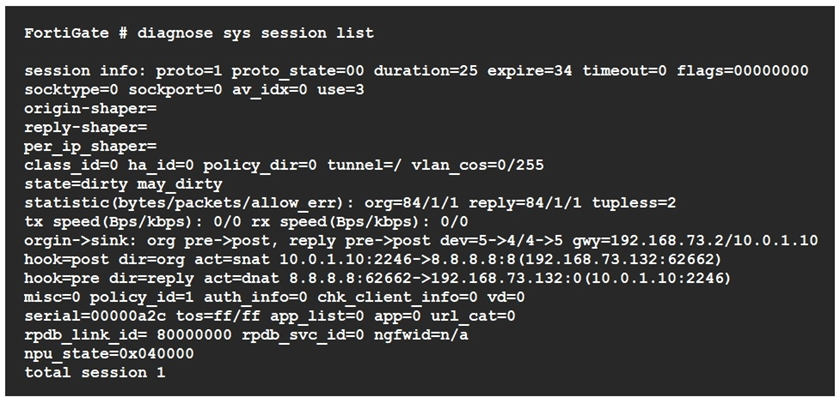

Refer to the exhibit.
Based on the exhibit, which statement about FortiGate re-evaluating traffic is true?
  1. The type of traffic defined and allowed on firewall policy ID 1 is UDP.
  2. Changes have been made on firewall policy ID 1 on FortiGate.
  3. Firewall policy ID 1 has source NAT disabled.
  4. FortiGate has terminated the session after a change on policy ID 1.
Correct answer: B
Question 8
What are two reasons why FortiGate would be unable to complete the zero-touch provisioning process? (Choose two.)
  1. The FortiGate cloud key has not been added to the FortiGate cloud portal.
  2. FortiDeploy has connected with FortiGate and provided the initial configuration to contact FortiManager.
  3. FortiGate has obtained a configuration from the platform template in FortiGate cloud.
  4. A factory reset performed on FortiGate.
  5. The zero-touch provisioning process has completed internally, behind FortiGate.
Correct answer: AE
Question 9
Which two statements reflect the benefits of implementing the ADVPN solution to replace conventional VPN topologies? (Choose two.)
  1. It creates redundant tunnels between hub-and-spokes, in case failure takes place on the primary links.
  2. It dynamically assigns cost and weight between the hub and the spokes, based on the physical distance.
  3. It ensures that spoke-to-spoke traffic no longer needs to flow through the tunnels through the hub.
  4. It provides direct connectivity between all sites by creating on-demand tunnels between spokes.
Correct answer: CD
Question 10

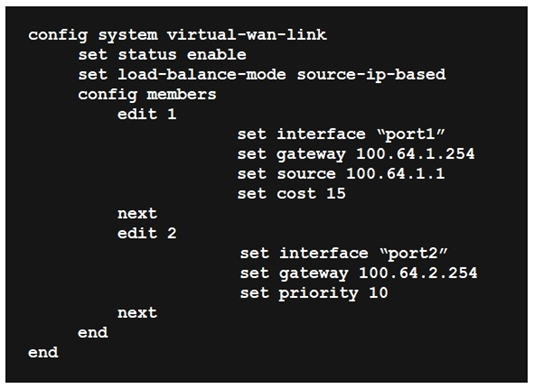

Refer to the exhibit.
Based on the output shown in the exhibit, which two criteria on the SD-WAN member configuration can be used to select an outgoing interface in an SD-WAN rule? (Choose two.)
  1. set cost 15.
  2. set source 100.64.1.1.
  3. set priority 10.
  4. set load-balance-mode source-ip-based.
Correct answer: AC
Question 11
Refer to the exhibit.
Which two statements about the debug output are correct? (Choose two.)
  1. The debug output shows per-IP shaper values and real-time readings.
  2. This traffic shaper drops traffic that exceeds the set limits.
  3. Traffic being controlled by the traffic shaper is under 1 Kbps.
  4. FortiGate provides statistics and reading based on historical traffic logs.
Correct answer: AB
