Demo Questions

Question 1

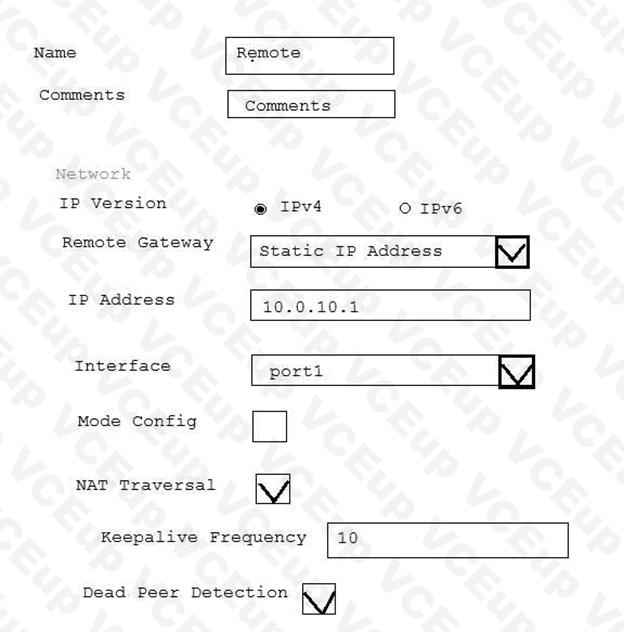

Examine the IPsec configuration shown in the exhibit; then answer the question below.

An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1 diagnose debug application ike -1 diagnose debug enable The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output.
Why isn't there any output?
  1. The IKE real time shows the phases 1 and 2 negotiations only. It does not show any more output once the tunnel is up.
  2. The log-filter setting is set incorrectly. The VPN's traffic does not match this filter.
  3. The IKE real time debug shows the phase 1 negotiation only. For information after that, the administrator must use the IPsec real time debug instead: diagnose debug application ipsec -1.
  4. The IKE real time debug shows error messages only. If it does not provide any output, it indicates that the tunnel is operating normally.
Correct answer: B
Explanation:
Question 2
Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)
  1. SIP session helper runs in the kernel; SIP ALG runs as a user space process.
  2. SIP ALG supports SIP HA failover; SIP helper does not.
  3. SIP ALG supports SIP over IPv6; SIP helper does not.
  4. SIP ALG can create expected sessions for media traffic; SIP helper does not.
  5. SIP helper supports SIP over TCP and UDP; SIP ALG supports only SIP over UDP.
Correct answer: BCD
Explanation:
Question 3

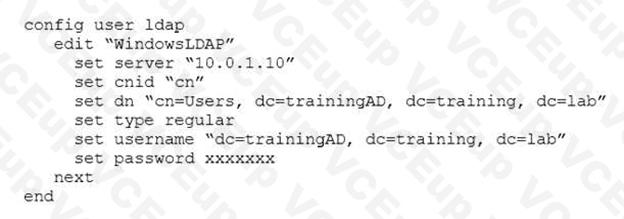

A FortiGate device has the following LDAP configuration:

The administrator executed the `dsquery' command in the Windows LDAp server 10.0.1.10, and got the following output:
>dsquery user samid administrator
"CN=Administrator, CN=Users, DC=trainingAD, DC=training, DC=lab"
Based on the output, what FortiGate LDAP setting is configured incorrectly?
  1. cnid.
  2. username.
  3. password.
  4. dn.
Correct answer: B
Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD37516
https://kb.fortinet.com/kb/viewContent.do?externalId=FD37516
Question 4
A corporate network allows Internet Access to FSSO users only. The FSSO user student does not have Internet access after successfully logged into the Windows AD network. The output of the `diagnose debug authd fsso list' command does not show student as an active FSSO user. Other FSSO users can access the Internet without problems. What should the administrator check? (Choose two.)
  1. The user student must not be listed in the CA's ignore user list.
  2. The user student must belong to one or more of the monitored user groups.
  3. The student workstation's IP subnet must be listed in the CA's trusted list.
  4. At least one of the student's user groups must be allowed by a FortiGate firewall policy.
Correct answer: AD
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828
Question 5
An administrator has decreased all the TCP session timers to optimize the FortiGate memory usage.
However, after the changes, one network application started to have problems. During the troubleshooting, the administrator noticed that the FortiGate deletes the sessions after the clients send the SYN packets, and before the arrival of the SYN/ACKs. When the SYN/ACK packets arrive to the FortiGate, the unit has already deleted the respective sessions. Which TCP session timer must be increased to fix this problem?
  1. TCP half open.
  2. TCP half close.
  3. TCP time wait.
  4. TCP session time to live.
Correct answer: A
Explanation:
 http://docslegacy. fortinet.com/fos40hlp/43prev/wwhelp/wwhimpl/common/html/wwhelp.htm?context=fgt&fil e=CLI_get_Commands.58.25.htmlThe tcp-halfopen-timer controls for how long, after a SYN packet, a session without SYN/ACK remains in the table.The tcp-halfclose-timer controls for how long, after a FIN packet, a session without FIN/ACK remains in the table.The tcp-timewait-timer controls for how long, after a FIN/ACK packet, a session remains in the table. A closed session remains in the session table for a few seconds more to allow any out-ofsequence packet.
 http://docslegacy. fortinet.com/fos40hlp/43prev/wwhelp/wwhimpl/common/html/wwhelp.htm?context=fgt&fil e=CLI_get_Commands.58.25.html
The tcp-halfopen-timer controls for how long, after a SYN packet, a session without SYN/ACK remains in the table.
The tcp-halfclose-timer controls for how long, after a FIN packet, a session without FIN/ACK remains in the table.
The tcp-timewait-timer controls for how long, after a FIN/ACK packet, a session remains in the table. A closed session remains in the session table for a few seconds more to allow any out-ofsequence packet.
Question 6
An administrator is running the following sniffer in a FortiGate: diagnose sniffer packet any "host 10.0.2.10" 2 What information is included in the output of the sniffer? (Choose two.)
  1. Ethernet headers.
  2. IP payload.
  3. IP headers.
  4. Port names.
Correct answer: BC
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11186
https://kb.fortinet.com/kb/documentLink.do?externalID=11186
Question 7

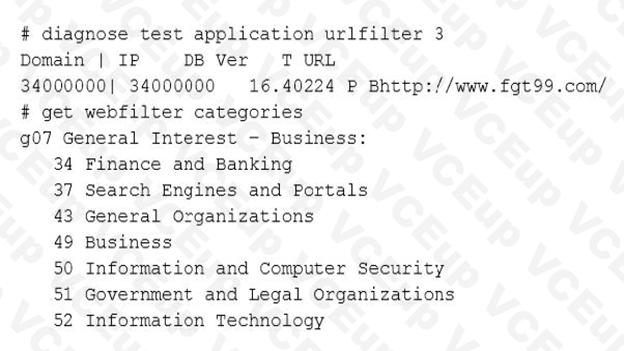

Examine the partial output from two web filter debug commands; then answer the question below:

Based on the above outputs, which is the FortiGuard web filter category for the web site www.fgt99.com?
  1. Finance and banking
  2. General organization.
  3. Business.
  4. Information technology.
Correct answer: C
Explanation:
Question 8

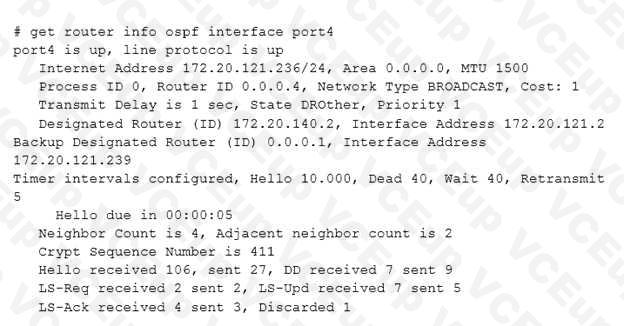

Examine the output of the `get router info ospf interface' command shown in the exhibit; then answer the question below.

Which statements are true regarding the above output? (Choose two.)
  1. The port4 interface is connected to the OSPF backbone area.
  2. The local FortiGate has been elected as the OSPF backup designated router.
  3. There are at least 5 OSPF routers connected to the port4 network.
  4. Two OSPF routers are down in the port4 network.
Correct answer: AC
Explanation:
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
Question 9

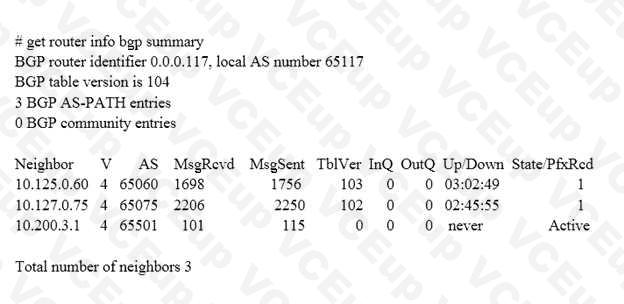

Examine the output of the `get router info bgp summary' command shown in the exhibit; then answer the question below.

Which statements are true regarding the output in the exhibit? (Choose two.)
  1. BGP state of the peer 10.125.0.60 is Established.
  2. BGP peer 10.200.3.1 has never been down since the BGP counters were cleared.
  3. Local BGP peer has not received an OpenConfirm from 10.200.3.1.
  4. The local BGP peer has received a total of 3 BGP prefixes.
Correct answer: AC
Explanation:
Question 10

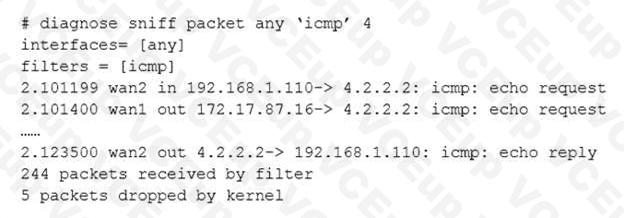

Examine the following partial output from a sniffer command; then answer the question below.

What is the meaning of the packets dropped counter at the end of the sniffer?
  1. Number of packets that didn't match the sniffer filter.
  2. Number of total packets dropped by the FortiGate.
  3. Number of packets that matched the sniffer filter and were dropped by the FortiGate.
  4. Number of packets that matched the sniffer filter but could not be captured by the sniffer.
Correct answer: D
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11655
https://kb.fortinet.com/kb/documentLink.do?externalID=11655
Question 11
Examine the IPsec configuration shown in the exhibit; then answer the question below.

An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1 diagnose debug application ike -1 diagnose debug enable The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output.
Why isn't there any output?
  1. The IKE real time shows the phases 1 and 2 negotiations only. It does not show any more output once the tunnel is up.
  2. The log-filter setting is set incorrectly. The VPN's traffic does not match this filter.
  3. The IKE real time debug shows the phase 1 negotiation only. For information after that, the administrator must use the IPsec real time debug instead: diagnose debug application ipsec -1.
  4. The IKE real time debug shows error messages only. If it does not provide any output, it indicates that the tunnel is operating normally.
Correct answer: B
Explanation:
Question 12
Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)
  1. SIP session helper runs in the kernel; SIP ALG runs as a user space process.
  2. SIP ALG supports SIP HA failover; SIP helper does not.
  3. SIP ALG supports SIP over IPv6; SIP helper does not.
  4. SIP ALG can create expected sessions for media traffic; SIP helper does not.
  5. SIP helper supports SIP over TCP and UDP; SIP ALG supports only SIP over UDP.
Correct answer: BCD
Explanation:
Question 13
A FortiGate device has the following LDAP configuration:

The administrator executed the `dsquery' command in the Windows LDAp server 10.0.1.10, and got the following output:
>dsquery user samid administrator
"CN=Administrator, CN=Users, DC=trainingAD, DC=training, DC=lab"
Based on the output, what FortiGate LDAP setting is configured incorrectly?
  1. cnid.
  2. username.
  3. password.
  4. dn.
Correct answer: B
Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD37516
https://kb.fortinet.com/kb/viewContent.do?externalId=FD37516
Question 14
A corporate network allows Internet Access to FSSO users only. The FSSO user student does not have Internet access after successfully logged into the Windows AD network. The output of the `diagnose debug authd fsso list' command does not show student as an active FSSO user. Other FSSO users can access the Internet without problems. What should the administrator check? (Choose two.)
  1. The user student must not be listed in the CA's ignore user list.
  2. The user student must belong to one or more of the monitored user groups.
  3. The student workstation's IP subnet must be listed in the CA's trusted list.
  4. At least one of the student's user groups must be allowed by a FortiGate firewall policy.
Correct answer: AD
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828
Question 15
An administrator has decreased all the TCP session timers to optimize the FortiGate memory usage.
However, after the changes, one network application started to have problems. During the troubleshooting, the administrator noticed that the FortiGate deletes the sessions after the clients send the SYN packets, and before the arrival of the SYN/ACKs. When the SYN/ACK packets arrive to the FortiGate, the unit has already deleted the respective sessions. Which TCP session timer must be increased to fix this problem?
  1. TCP half open.
  2. TCP half close.
  3. TCP time wait.
  4. TCP session time to live.
Correct answer: A
Explanation:
 http://docslegacy. fortinet.com/fos40hlp/43prev/wwhelp/wwhimpl/common/html/wwhelp.htm?context=fgt&fil e=CLI_get_Commands.58.25.htmlThe tcp-halfopen-timer controls for how long, after a SYN packet, a session without SYN/ACK remains in the table.The tcp-halfclose-timer controls for how long, after a FIN packet, a session without FIN/ACK remains in the table.The tcp-timewait-timer controls for how long, after a FIN/ACK packet, a session remains in the table. A closed session remains in the session table for a few seconds more to allow any out-ofsequence packet.
 http://docslegacy. fortinet.com/fos40hlp/43prev/wwhelp/wwhimpl/common/html/wwhelp.htm?context=fgt&fil e=CLI_get_Commands.58.25.html
The tcp-halfopen-timer controls for how long, after a SYN packet, a session without SYN/ACK remains in the table.
The tcp-halfclose-timer controls for how long, after a FIN packet, a session without FIN/ACK remains in the table.
The tcp-timewait-timer controls for how long, after a FIN/ACK packet, a session remains in the table. A closed session remains in the session table for a few seconds more to allow any out-ofsequence packet.
Question 16
An administrator is running the following sniffer in a FortiGate: diagnose sniffer packet any "host 10.0.2.10" 2 What information is included in the output of the sniffer? (Choose two.)
  1. Ethernet headers.
  2. IP payload.
  3. IP headers.
  4. Port names.
Correct answer: BC
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11186
https://kb.fortinet.com/kb/documentLink.do?externalID=11186
Question 17
Examine the partial output from two web filter debug commands; then answer the question below:

Based on the above outputs, which is the FortiGuard web filter category for the web site www.fgt99.com?
  1. Finance and banking
  2. General organization.
  3. Business.
  4. Information technology.
Correct answer: C
Explanation:
Question 18
Examine the output of the `get router info ospf interface' command shown in the exhibit; then answer the question below.

Which statements are true regarding the above output? (Choose two.)
  1. The port4 interface is connected to the OSPF backbone area.
  2. The local FortiGate has been elected as the OSPF backup designated router.
  3. There are at least 5 OSPF routers connected to the port4 network.
  4. Two OSPF routers are down in the port4 network.
Correct answer: AC
Explanation:
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
Question 19
Examine the output of the `get router info bgp summary' command shown in the exhibit; then answer the question below.

Which statements are true regarding the output in the exhibit? (Choose two.)
  1. BGP state of the peer 10.125.0.60 is Established.
  2. BGP peer 10.200.3.1 has never been down since the BGP counters were cleared.
  3. Local BGP peer has not received an OpenConfirm from 10.200.3.1.
  4. The local BGP peer has received a total of 3 BGP prefixes.
Correct answer: AC
Explanation:
Question 20
Examine the following partial output from a sniffer command; then answer the question below.

What is the meaning of the packets dropped counter at the end of the sniffer?
  1. Number of packets that didn't match the sniffer filter.
  2. Number of total packets dropped by the FortiGate.
  3. Number of packets that matched the sniffer filter and were dropped by the FortiGate.
  4. Number of packets that matched the sniffer filter but could not be captured by the sniffer.
Correct answer: D
Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11655
https://kb.fortinet.com/kb/documentLink.do?externalID=11655
