NSE6_FVE-5.3: Fortinet NSE 6 - FortiVoice 5.3 - Free download from Exam Files

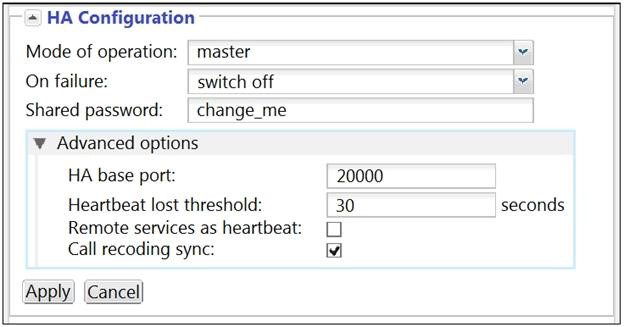

Refer to the exhibit.

In the event of a failover, which statement about the configuration shown in the exhibit is true?

Once the unit has recovered from failure the mode of operation changes to slave.
Once the unit has recovered from failure it goes back to its programmed state of master.
Once the unit has recovered from failure it stays in idle state until it is manually configured as master or slave.
Once the unit has recovered from a failure it shuts down.

Correct answer: B

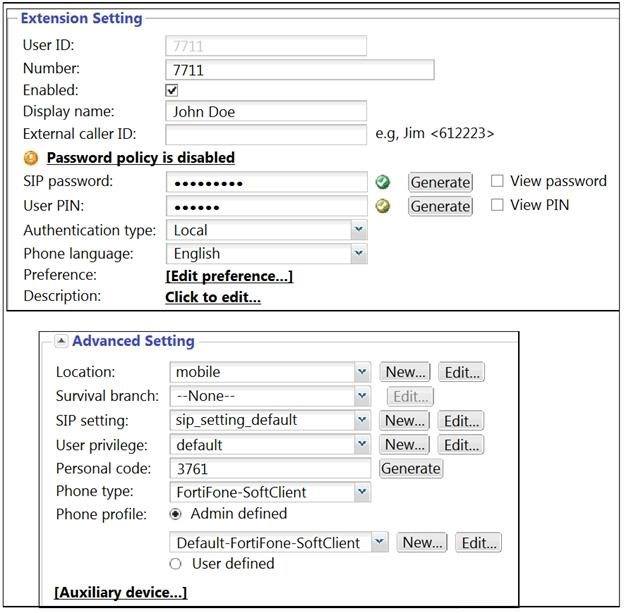

Refer to the exhibit.

An administrator has configured FortiVoice Advanced Setting for a user as shown in the exhibit.

Given this configuration, which statement is true?

The extension can be reached at 3761 when user is remote.
FortiVoice is configured behind a NAT device.
The user extension is currently disabled.
The user extension is configured for SoftClient use.

Correct answer: D

What is a Page Group?

A group containing saved fax messages to be printed.
A group of extensions that can receive a page from another extension.
A group of available extensions to receive queued calls.
A group of extensions that are waiting to be configured.

Correct answer: B

Explanation:

Reference: https://pub.kb.fortinet.com/ksmcontent/Fortinet-Public/current/FortiVoice_5_0/FortiVoice-5.3.26-User-Portal-Guide-Sept30-2020.pdf (13)

What does the caller ID modification option do on managed gateways?

Allows the reception and relay of caller ID out on the trunk
Allows the relay of the caller ID from FortiVoice out on the trunk
Allows the reception of caller ID on the trunk and passes it to FortiVoice
Allows the application of caller ID modification rules to the trunk

Correct answer: B

For which purpose can the Pickup Group be used?

To update names in the directory
To email transcripts of voicemail to users
To make calls to any specified phone number
To allow you to log into another extension with your extension number

Correct answer: D

Explanation:

Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/03eb7779-50a7-11e9-94bf-00505692583a/FVE_admin_v5.3.0_rev9.pdf (189)

With respect to programming extensions, how is Pickup Group used?

To allow extensions to answer calls ringing at another extension
To allow extensions to pick up calls when already on a call
To allow extensions to continuous ring until call is answered or dropped
To group extensions that can only answer calls by picking up the handset

Correct answer: A

Explanation:

Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/03eb7779-50a7-11e9-94bf-00505692583a/FVE_admin_v5.3.0_rev9.pdf (189)

When configuring High Availability, which three configurations are required on both units? (Choose three.)

Configure the system time
Configure the Admin Profile
Configure the Mode of Operation
Configure the On Failure behavior
Configure the Virtual IP address

Correct answer: CDE

What is Auto Provisioning used for?

Connects a FortiFone IP phone to a gateway device
Connects the FortiVoice to a gateway device
Allows the FortiFone IP phone to register with a SIP trunk
Allows FortiFone IP phones to automatically obtain configuration files when discovered on the network

Correct answer: D

Explanation:

Reference: https://s3.amazonaws.com/fortinetweb/docs.fortinet.com/v2/attachments/92604e64-243b-11e9-b20a-f8bc1258b856/fortivoice_auto_provisioning.pdf

Which statement describes what happens when you add a DID to an eFax account?

FortiVoice will monitor for CNG tones on the DID when the calls come in on that number.
The eFax account can use the DID for sending out only.
Calls to the DID will go directly to the eFax account.
FortiVoice will ignore inbound calls to the DID.

Correct answer: C

Explanation:

Reference: https://www.vunkers.com/wp-content/uploads/2018/09/FortiVoice-6.0.0-Cookbook.pdf

When adding gateways, which information is retrieved when you select 'Get device information'? (Choose three.)

Serial Number
Firmware
MAC Address
Description
Type

Correct answer: ACE

Explanation:

Reference: https://docs.fortinet.com/document/fortivoice-enterprise/6.4.0/fortivoice-phone-system-administration-guide/355098/managing-fxo-gateways
