Download Dell VxRail Operate 2023.D-VXR-OE-23.VCEplus.2024-08-23.37q.vcex

When adding a node to an existing VxRail Cluster and the node is not discovered in the vSphere Client, the 'loudmouth' log should be analyzed. The loudmouth log is crucial for node discovery as it records the communication and discovery processes between nodes in the VxRail cluster. Analyzing this log can help diagnose issues related to node visibility and network communication.Dell VxRail Troubleshooting Guide: VxRail Troubleshooting Guide

Two failure events that cause vSAN to start rebuilding components immediately on the VxRail system are:ESXi host failureCapacity device failureWhen an ESXi host fails, vSAN detects the loss of the host and initiates the rebuilding of the affected components to maintain data availability and integrity. Similarly, when a capacity device (such as an SSD or HDD) fails, vSAN starts the rebuild process to ensure that data remains protected and accessible.VMware vSAN Failure Handling: vSAN Failure Handling

The maximum number of remote vSAN data stores a client cluster can mount using vSAN HCI Mesh is 6. VMware vSAN HCI Mesh allows for the mounting of remote vSAN datastores to provide flexible storage solutions and scalability. This feature enables multiple clusters to share storage resources efficiently. VMware vSAN HCI Mesh DocumentationDell VxRail Technical Guide

To calculate the additional vSAN capacity consumed when a 100 GB VM is vMotioned from Cluster-A to Cluster-B, consider the following:Cluster-A: FTT = 2 and FTM = Erasure Coding (RAID 6), which uses approximately 1.5 times the data size, thus 100 GB VM uses about 150 GB of vSAN capacity.Cluster-B: FTT = 2 and FTM = Mirroring (RAID 1), which uses 3 times the data size, thus 100 GB VM uses 300 GB of vSAN capacity.The difference in vSAN capacity consumed between Cluster-B and Cluster-A is: 300 GB (Cluster-B) - 150 GB (Cluster-A) = 150 GBSo, Cluster-B consumes 150 GB more vSAN capacity than Cluster-A.VMware vSAN Storage Policies: vSAN Storage Policies

To ensure that vSAN does not start rebuilding absent components while a node is in maintenance mode, an administrator should increase the vSAN Object repair timer. The Object repair timer controls the delay before vSAN initiates the rebuild of absent components. By increasing this timer, the administrator can ensure that maintenance can be completed without triggering unnecessary rebuilds, reducing the load on the system and preventing potential data redundancy issues.VMware vSAN Configuration Guide: vSAN Configuration Guide

The default rekey interval for vSAN data-in-transit encryption on the VxRail Cluster is 6 hours. This interval specifies how frequently the encryption keys are rotated to ensure secure communication within the cluster. Regular rekeying helps maintain data security by reducing the risk of encryption key compromise.VMware vSAN Encryption Guide: vSAN Encryption Guide

The duration of the evaluation licenses for vSphere ESXi included with the VxRail system is 45 days. This trial period allows users to explore and test the features and capabilities of vSphere ESXi before committing to a full license.VMware vSphere Licensing Documentation: vSphere Licensing

The three data protection options included with VxRail are:vSphere Replication: Provides simple and cost-effective replication of virtual machines for data protection and disaster recovery. It allows users to replicate VMs between different vSphere environments.vSAN Stretched Cluster: Offers high availability and disaster recovery by stretching a single vSAN cluster across two geographically separated sites. It ensures data redundancy and site-level failure protection.RecoverPoint for VMs: Provides continuous data protection and disaster recovery for VMware virtual machines. It enables point-in-time recovery and ensures minimal data loss in the event of a failure.Dell VxRail Data Protection Solutions: VxRail Data Protection

When a VM is configured with hard disks totaling 100 GB and uses a RAID 5 vSAN Storage Policy, the total space consumed on the vSAN Datastore is approximately 133 GB. RAID 5 in vSAN requires additional space for parity, which is typically about 1.33 times the original data size. This means that for 100 GB of allocated space, the actual consumed space will be around 133 GB, accounting for the data and parity overhead.VMware vSAN Storage Policies and Space Efficiency: vSAN Storage Policies

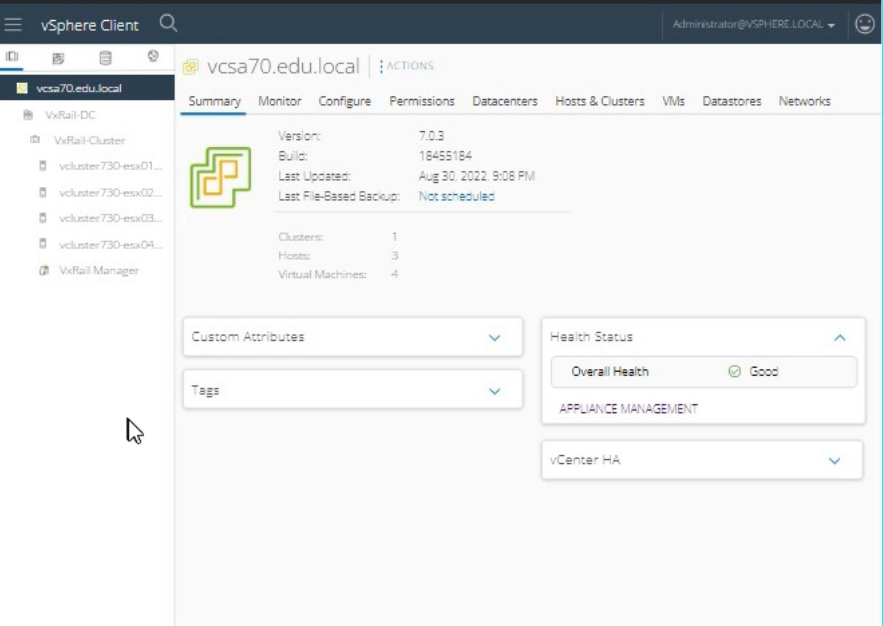

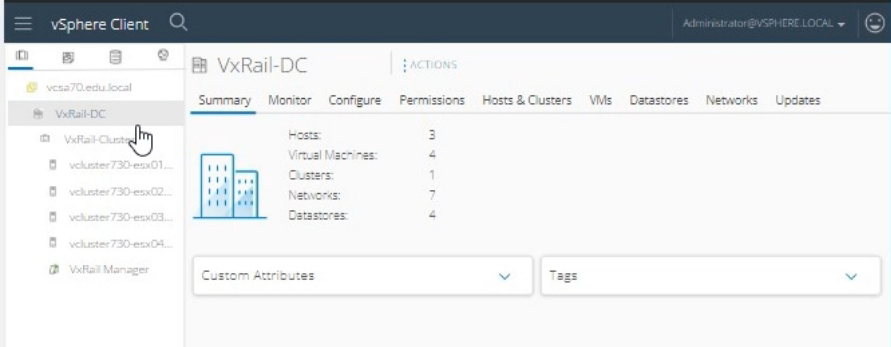

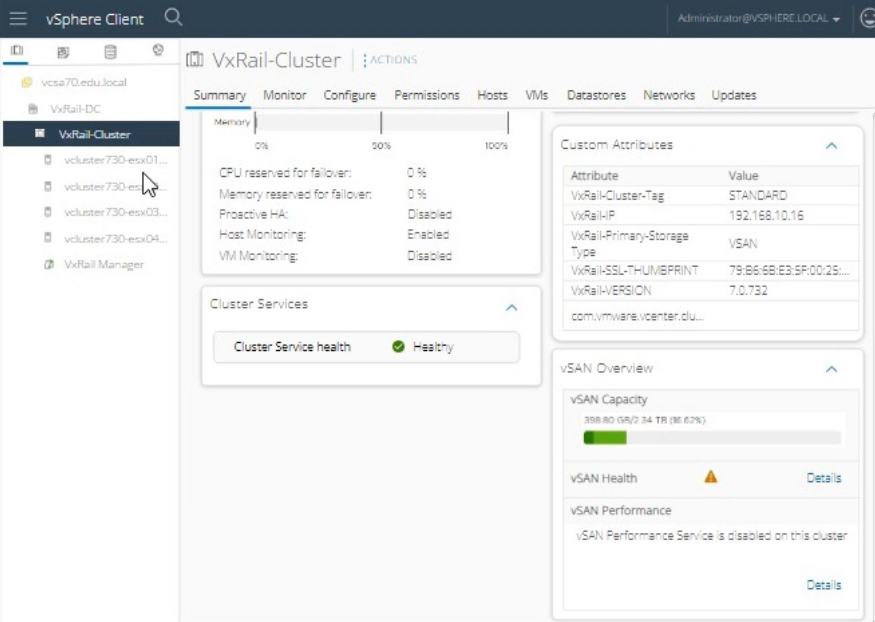

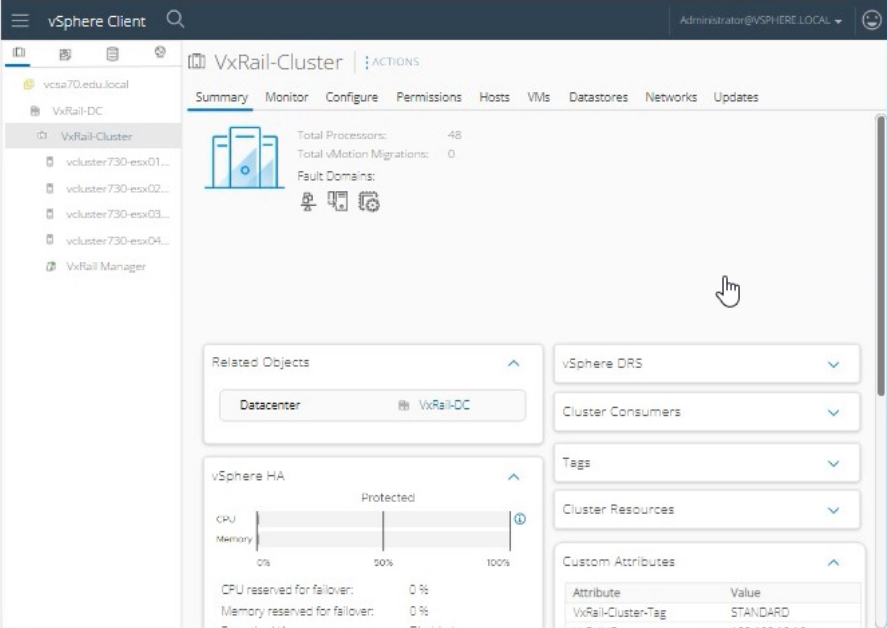

To temporarily remove a node with a specific serial number from the VxRail cluster, follow these steps:Log in to vSphere Client:Open the vSphere Client.Enter the username: [email protected] the password: VMw@r3!123.Click Login.Identify the Node with Serial Number 'V0730040000000':In the vSphere Client interface, navigate to the Hosts and Clusters view.Expand the VxRail-DC and then the VxRail-Cluster.Locate the Node:Click on each host (e.g., vcluster730-esx01, vcluster730-esx02, vcluster730-esx03, vcluster730-esx04) and check the Summary tab to identify the node with the serial number V0730040000000.The Summary tab provides details about the hardware, including the serial number.Put the Node in Maintenance Mode:Right-click on the identified node.Select Maintenance Mode > Enter Maintenance Mode.Select Ensure Accessibility and click OK.Remove the Node from the Cluster:Once the node is in maintenance mode, right-click the node again.Select Remove from Inventory.Confirm the action by clicking Yes or OK when prompted.Verify the Node Removal:Ensure that the node is no longer listed under the VxRail-Cluster.Check the overall health and status of the cluster to confirm that it is functioning properly without the removed node.Dell VxRail Administration Guide: VxRail Administration Guide=========================Note: Be cautious when removing nodes from a VxRail cluster, as this can impact the cluster's capacity and redundancy. Always follow proper procedures and consult with Dell Support as needed.
