1Y0-440: Architecting a Citrix Networking Solution

Scenario: Based on a discussion between a Citrix Architect and a team of Workspacelab members, the MPX Logical layout for Workspacelab has been created across three (3) sites.

The requirements captured during the design discussion held for a NetScaler design project are as follows:

Two (2) pairs of NetScaler MPX appliances deployed in the DMZ and internal network.
High Availability will be accessible for each NetScaler MPX
The external NetScaler MPX appliance will be deployed in multi-arm mode.
The internal NetScaler MPX will be deployed in single-arm mode wherein it will be connected to Cisco ACI Fabric.
All three (3) Workspacelab sites: Dc, NDR and DR, will have similar NetScaler configurations and design.

How many NetScaler MPX appliances should the architect deploy at each site to meet the design requirements above?

4
12
6
2

Correct answer: C

Scenario: A Citrix Architect has configured NetScaler Gateway integration with a XenApp environment to provide access to users from two domains: vendorlab.com and workslab.com. The Authentication method used is LDAP.

Which two steps are required to achieve Single Sign-on StoreFront using a single store? (Choose two.)

Configure Single sign-on domain in Session profile ‘userPrincipalName’.
Do NOT configure SSO Name attribute in LDAP Profile.
Do NOT configure sign-on domain in Session Profile.
Configure SSO Name attribute to ‘userPrincipalName’ in LDAP Profile.

Correct answer: BD

Explanation:

Reference: https://docs.citrix.com/en-us/storefront/3-12/plan/user-authentication.html

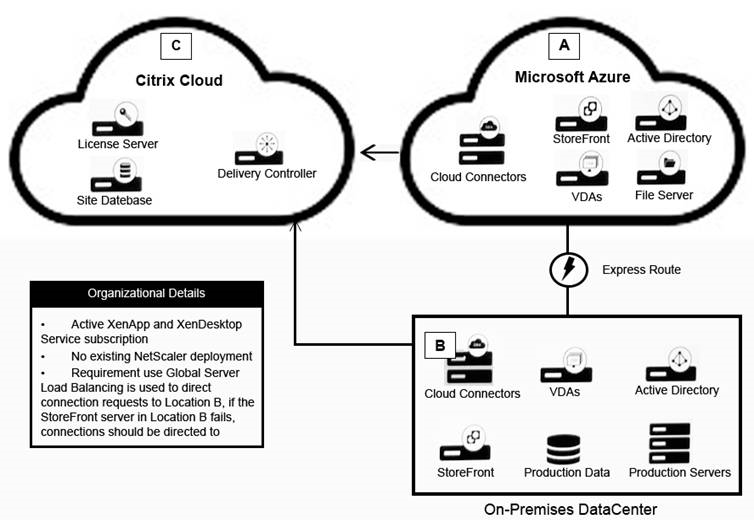

Scenario: A Citrix Architect needs to design a hybrid XenApp and XenDesktop environment which will include Citrix Cloud as well as resource locations in an on-premises datacenter and Microsoft Azure.

Organizational details and requirements are as follows:

Active XenApp and XenDesktop Service subscription
No existing NetScaler deployment
Global Server Load Balancing is used to direct connection requests to Location B, if the StoreFront server in Location B fails, connections should be directed to Location A.

Click the Exhibit button to view the conceptual environment architecture.

The architect should use _____ in Location A, and should use ________ in Location B. (Choose the correct option to complete the sentence.)

NetScaler ADC (BYO); NetScaler gateway appliance
NetScaler ADC (BYO); No NetScaler products
NetScaler ADC (BYO); NetScaler ADC (BYO)
NetScaler Gateway appliance; NetScaler Gateway appliance
NetScaler Gateway appliance; NetScaler ADC (BYO)

Correct answer: B

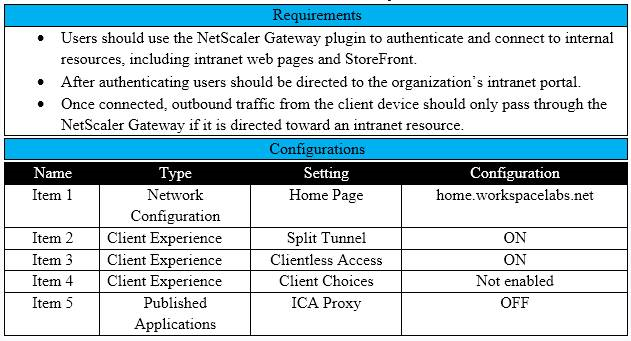

Scenario: A Citrix Architect needs to assess an existing NetScaler Gateway deployment. During the assessment, the architect collected key requirements for VPN users, as well as the current session profile settings that are applied to those users.

Click the Exhibit button to view the information collected by the architect.

Which configurations should the architect change to meet all the stated requirements?

Item 4
Item 3
Item 5
Item 2
Item 1

Correct answer: E

Scenario: A Citrix Architect needs to design a NetScaler deployment in Microsoft Azure. An Active-Passive NetScaler VPX pair will provide load balancing for three distinct web applications. The architect has identified the following requirements:

Minimize deployment costs where possible.
Provide dedicated bandwidth for each web application.
Provide a different public IP address for each web application.

For this deployment, the architect should configure each NetScaler VPX machine to have ______ network interface(s) and configure IP address by using ________. (Choose the correct option to complete the sentence).

4; Port Address Translation
1; Network Address Translation
1; Port Address Translation
2; Network Address Translation
4; Network Address Translation
2; Port Address Translation

Correct answer: C

Which encoding type can a Citrix Architect use to encode the StyleBook content, when importing the StyleBook configuration under source attribute?

Hex
base64
URL
Unicode

Correct answer: B

Explanation:

Reference: https://docs.citrix.com/en-us/netscaler-mas/12/stylebooks/how-to-use-api-to-create-configuration-from-stylebooks/import-custom-stylebooks.html

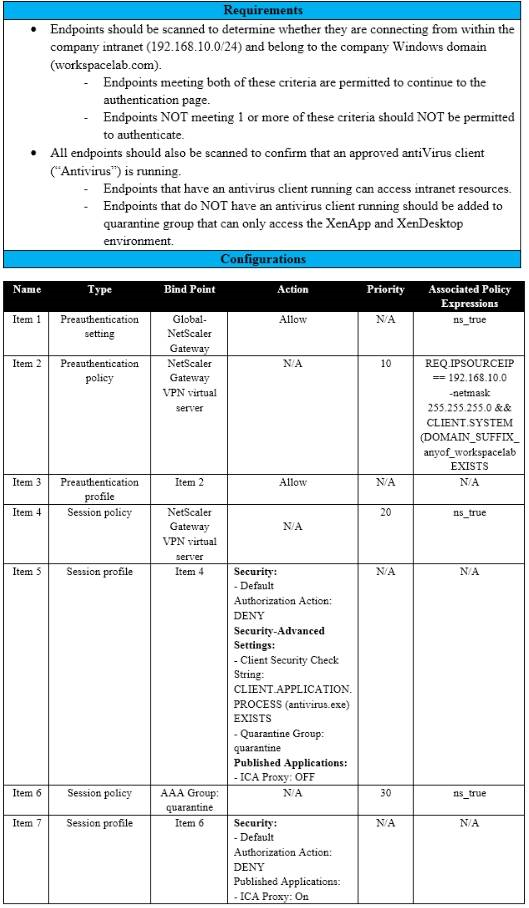

Scenario: A Citrix Architect needs to assess an existing on-premises NetScaler deployment which includes Advanced Endpoint Analysis scans. During a previous security audit, the team discovered that certain endpoint devices were able to perform unauthorized actions despite NOT meeting pre-established criteria.

The issue was isolated to several endpoint analysis (EPA) scan settings.

Click the Exhibit button to view the endpoint security requirements and configured EPA policy settings.

Which setting is preventing the security requirements of the organization from being met?

Item 6
Item 7
Item 1
Item 3
Item 5
Item 2
Item 4

Correct answer: F

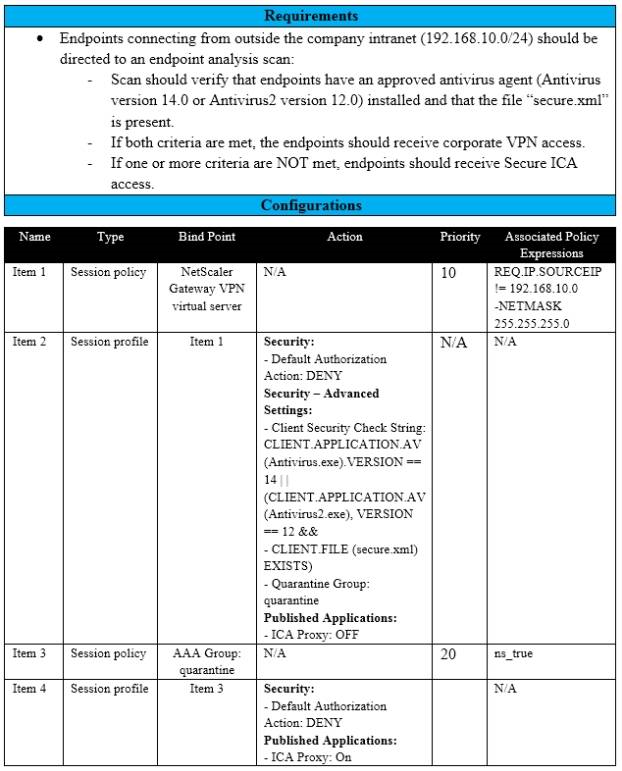

Scenario: A Citrix Architect needs to assess an existing on-premises NetScaler deployment which includes Advanced Endpoint Analysis scans. During a previous security audit, the team discovered that certain endpoint devices were able to perform unauthorized actions despite NOT meeting pre-established criteria.

The issue was isolated to several endpoint analysis (EPA) scan settings.

Click the Exhibit button to view the endpoint security requirements and configured EPA policy settings.

Which setting is preventing the security requirements of the organization from being met?

Item 1
Item 4
Item 2
Item 3

Correct answer: D

Which parameter must a Citrix Architect configure to ensure that HDX Proxy Connection terminates upon AAA Session TimeOut?

ICA session timeout in VPN parameters
Session timeout(mins) in NetScaler gateway Session Profile.
Session timeout(mins) in VPN Parameters
ICA session timeout in netScaler Gateway Session Profile.

Correct answer: D

Explanation:

Reference: https://www.citrix.com/content/dam/citrix/en_us/citrix-developer/documents/Netscaler/how-do-i-ica-session-timeout-with-aaa.pdf

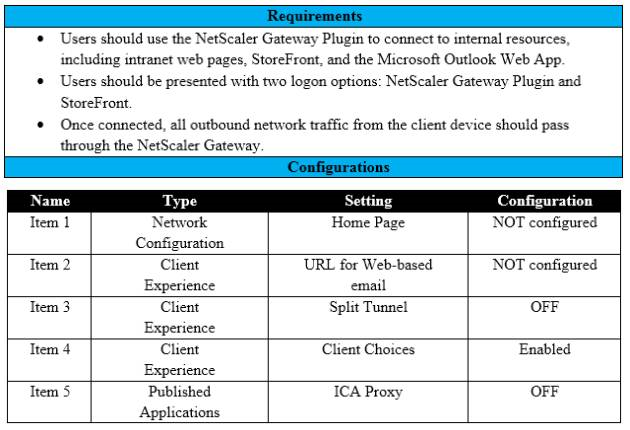

Scenario: A Citrix Architect needs to assess an existing NetScaler gateway deployment. During the assessment, the architect collected key requirements for VPN users, as well as the current session profile settings that are applied to those users.

Click the Exhibit button to view the information collected by the architect.
