Demo Questions

Question 1
On an ASA with multiple connection profiles for different departments, what is the best design to ensure that AnyConnect users are assigned the correct connection profile based on their department and do not have the ability to choose a different connection profile?
  1. group URL
  2. group alias
  3. dynamic access policy
  4. certificate mapping
Correct answer: D
Question 2
Which Diffie Hellman group should be used when ECDH is required in a VPN configuration?
  1. 24
  2. 19
  3. 16
  4. 15
Correct answer: B
Question 3

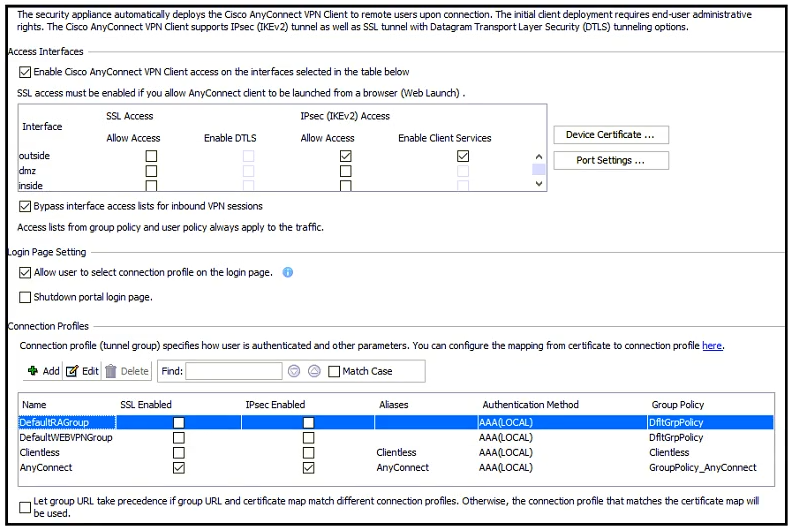

Refer to the exhibit. Based on this ASDM output, which remote access technologies are allowed on the ASA?
  1. SSLAnyConnect VPN
  2. IKEv2 and SSL AnyConnect VPN
  3. SSL clientless VPN
  4. IKEv2 AnyConnect VPN
Correct answer: D
Question 4
A Cisco IOS router is reconfigured to connect to an additional DMVPN hub that is a part of a different DMVPN phase 3 cloud. After this change was made, users begin to experience problems accessing corporate resources over both tunnels. Before the additional tunnel was created, users could access resources over the first tunnel without any issues. Both tunnels terminate on the same interface of the router and use the same IPsec proposals. Which two actions resolve the issue without affecting spoke-to-spoke traffic in either DMVPN cloud? (Choose two.)
  1. Enable dead peer detection for both tunnels.
  2. Use the same shared IPsec profile for both tunnels.
  3. Configure the same NHRP network IDs for both tunnels.
  4. Specify the tunnel destination in each tunnel.
  5. Assign a unique tunnel key to each tunnel.
Correct answer: B, D
Question 5
Which VPN does VPN load balancing on the ASA support?
  1. VTI
  2. IPsec site-to-site tunnels
  3. L2TP over IPsec
  4. Cisco AnyConnect
Correct answer: D
Question 6

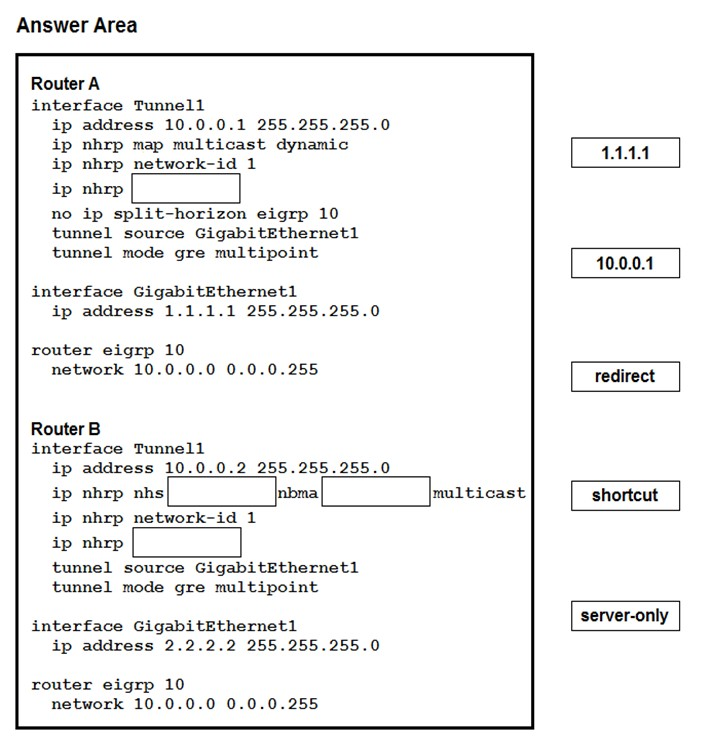

Drag and drop the correct commands from the right onto the blanks within the code on the left to implement a design that allow for dynamic spoke-to-spoke communication. Not all commands are used.
Correct answer: To work with this question, an Exam Simulator is required.
Explanation:
Reference:https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/xe-16/sec-conn-dmvpn-xe-16-book/sec-conn-dmvpn-summ- maps.html
Question 7
A network engineer has been tasked with configuring SSL VPN to provide remote users with access to the corporate network. Traffic destined to the enterprise IP range should go through the tunnel, and all other traffic should go directly to the Internet. Which feature should be configured to achieve this?
  1. U-turning
  2. hairpinning
  3. split-tunnel
  4. dual-homing
Correct answer: C
Question 8
An administrator is setting up AnyConnect for the first time for a few users. Currently, the router does not have access to a RADIUS server. Which AnyConnect protocol must be used to allow users to authenticate?
  1. EAP-GTC
  2. EAP-MSCHAPv2
  3. EAP-MD5
  4. EAP-AnyConnect
Correct answer: D
Question 9
An administrator is designing a VPN with a partner's non-Cisco VPN solution. The partner's VPN device will negotiate an IKEv2 tunnel that will only encrypt subnets 192.168.0.0/24 going to 10.0.0.0/24. Which technology must be used to meet these requirements?
  1. VTI
  2. crypto map
  3. GETVPN
  4. DMVPN
Correct answer: B
Question 10
Which feature must be disabled in EIGRP for DMVPN spokes to learn routes to other DMVPN spokes?
  1. split-horizon
  2. bandwidth percent
  3. next-hop-self
  4. hold time
Correct answer: A
Question 11

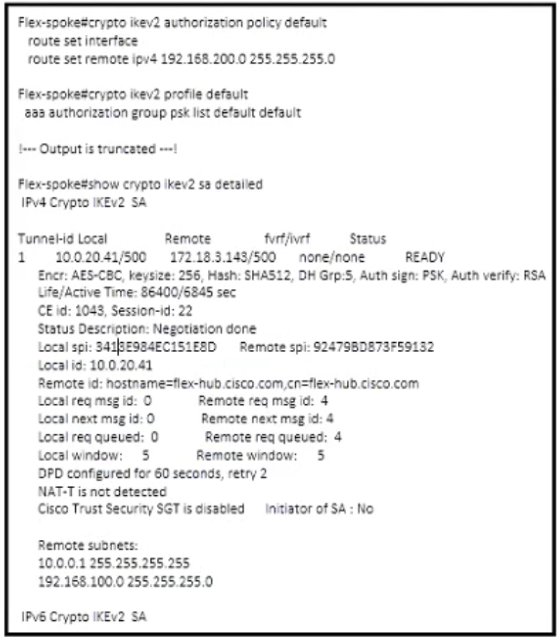

Refer to the exhibit.
An engineer has configured a spoke to connect to a FlexVPN hub. The tunnel is up, but pings fail when the engineer attempts to reach host 192.168.200.10 behind the spoke, and traffic is sourced from host 192.168.100.3, which is behind the FlexVPN server. Based on packet captures, the engineer discovers that host 192.168.200.10 receives the icmp echo and sends an icmp reply that makes it to the inside interface of the spoke. Based on the output in the exhibit captured on the spoke by the engineer, which action resolves this issue?
  1. Add the aaa authorization group cert list default default command to the spoke ikev2 profile.
  2. Add the route set remote ipv4 192.168.200.0 255.255.255.0 command to the hub authorization policy.
  3. Add the aaa authorization group cert list default default command to the hub ikev2 profile.
  4. Add the route set remote ipv4 192.168.100.0 255.255.255.0 command to the spoke authorization policy.
Correct answer: B
