Demo Questions

Question 1
You want to implement AAA on router R1 for a more robust authentication and authorization system. What is typically the first global command used to do this?
  1. aaa new-model
  2. aaa enable
  3. aaa server-group
  4. aaa authentication login
Correct answer: A
Explanation:
A: 3 - Mosted
Question 2
Refer to the exhibit A junior engineer updated a branch router configuration. Immediately after the change, the engineer receives calls from the help desk that branch personnel cannot reach any network destinations. Which configuration restores service and continues to block 10.1.1.100/32?
  1. route-map FILTER-IN deny 5
  2. ip prefix-list 102 seq 15 permit 0.0.0.0/32 le 32
  3. route-map FILTER-IN permit 20
  4. ip prefix-list 102 seq 5 permit 0.0.0.0/32 le 32
Correct answer: C
Explanation:
C: 10 - Mosted
Question 3

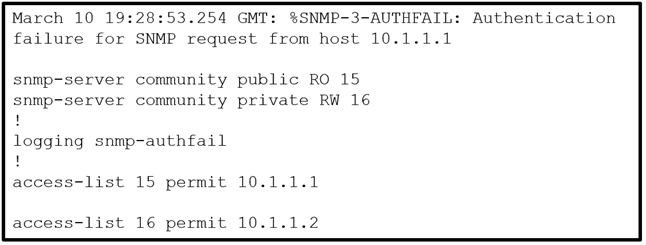

Refer to the exhibit. Which action resolves the issue?
  1. Configure host IP address in access-list 16.
  2. Configure SNMPv3 on the router.
  3. Configure SNMP authentication on the router.
  4. Configure a valid SNMP community string.
Correct answer: D
Explanation:
A: 5D: 27 - Mosted
Question 4
An engineer configured routing between multiple OSPF domains and introduced a routing loop that caused network instability. Which action resolves the problem?
  1. Set a tag using the redistribute command toward a domain and deny inbound in the other domain by a matching tag.
  2. Set a tag using the redistribute command toward a different domain and deny the matching tag when exiting from that domain.
  3. Set a tag using the network command in a domain and use the route-map command to deny the matching tag when exiting toward a different domain.
  4. Set a tag using the network command in a domain and use the route-map command to deny the matching tag when entering into a different domain.
Correct answer: A
Explanation:
A: 26 - MostedB: 12D: 9
Question 5
The IPv6 network is under attack by an unknown source that is neither in the binding table nor learned through neighbor discovery. Which feature helps prevent the attack?
  1. IPv6 Destination Guard
  2. IPv6 Prefix Guard
  3. IPv6 Router Advertisement Guard
  4. IPv6 Snooping
Correct answer: B
Explanation:
A: 2B: 22 - MostedD: 2
Question 6
Which of the following OSPF neighbor adjacency states is applicable only to manually configured OSPF neighbors in a Non Broadcast Multi-Access network?
  1. Attempt
  2. Init
  3. 2-Way
  4. Exstart
  5. Exchange
Correct answer: A
Explanation:
A: 5 - Mosted
Question 7
What is the function of BFD?
  1. It creates high CPU utilization on hardware deployments
  2. It provides uniform failure detection on the same media type
  3. It provides uniform failure detection regardless of media type
  4. It negotiates to the highest version if the neighbor version differs
Correct answer: C
Explanation:
C: 7 - Mosted
Question 8

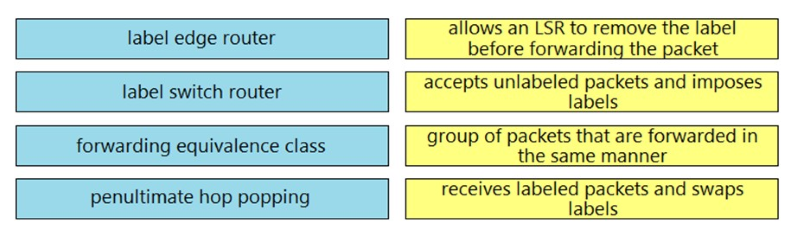

Drag and drop the MPLS concepts from the left onto the descriptions on the right.
Correct answer: To work with this question, an Exam Simulator is required.
Question 9
Unicast Reverse Path Forwarding (uRPF) has been configured on a service provider network to protect itself from spoofed based attacks. Which of the following are valid uRPF modes? (Choose two.)
  1. Strict mode
  2. Open mode
  3. Closed mode
  4. Block mode
  5. Loose mode
Correct answer: A, E
Explanation:
AE: 3 - Mosted
Question 10

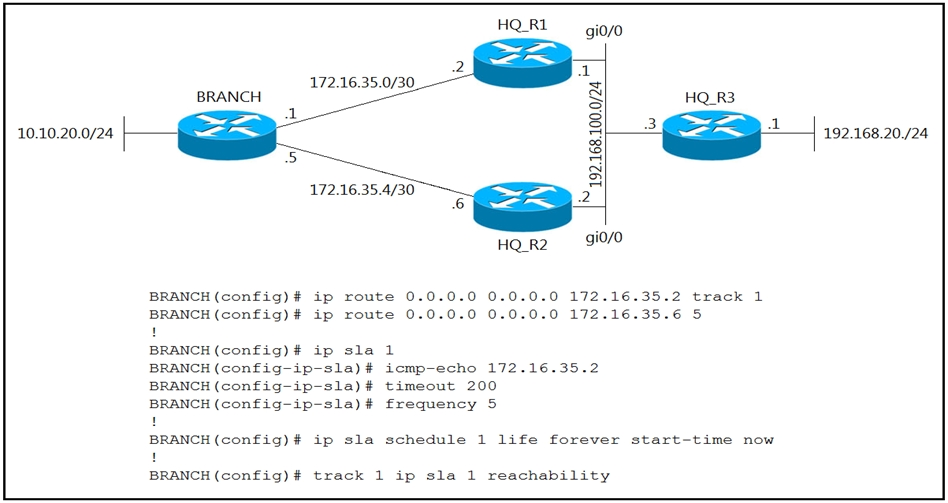

Refer to the exhibit. An engineer has successfully set up a floating static route from the BRANCH router to the HQ network using HQ_R1 as the primary default gateway. When the g0/0 goes down on HQ_R1, the branch network cannot reach the HQ network 192.168.20.0/24.
Which configuration resolves the issue?
  1. HQ_R3(config)# ip sla responder HQ_R3(config)# ip sla responder icmp-echo 172.16.35.1
  2. BRANCH(config)# ip sla 1 BRANCH(config-ip-sla)# icmp-echo 192.168.100.2
  3. HQ_R3(config)# ip sla responder HQ_R3(config)# ip sla responder icmp-echo 172.16.35.5
  4. BRANCH(config)# ip sla 1 BRANCH(config-ip-sla)# icmp-echo 192.168.100.1
Correct answer: D
Explanation:
D: 5 - Mosted
Question 11
Which of the following statements are true regarding two EIGRP routers to become neighbors?
  1. Must have identical hello and dead timers
  2. Must utilize unique router ID’s
  3. Must have matching MTU’s on the physical network links that connect the routers.
  4. Must use the same ASN.
Correct answer: D
Explanation:
D: 3 - Mosted
