Demo Questions

Question 1

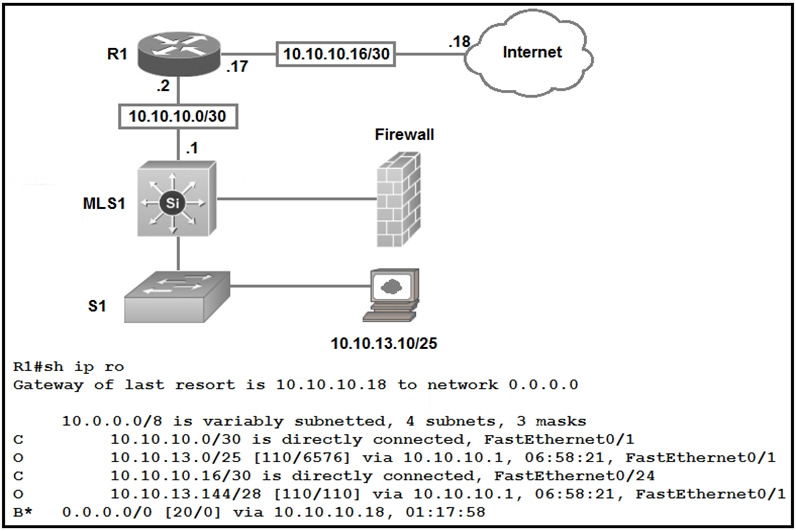

Refer to the exhibit. Which type of route does R1 use to reach host
  1. default route
  2. network route
  3. host route
  4. floating static route
Correct answer: B
Question 2

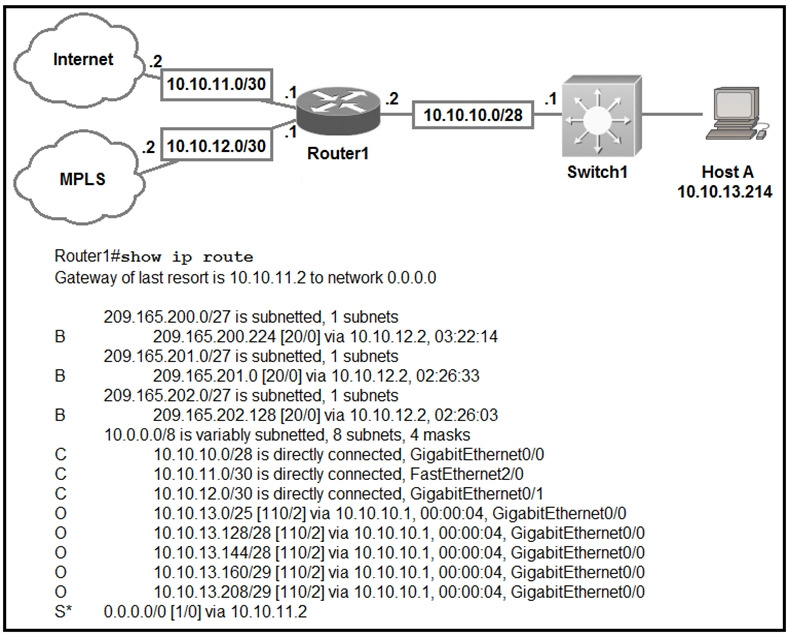

Refer to the exhibit. Which prefix does Router1 use for traffic to Host A?
Correct answer: D
Question 3
Drag and drop the descriptions of file-transfer protocols from the left onto the correct protocols on the right.
Correct answer: To work with this question, an Exam Simulator is required.
Question 4
A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two.)
  1. input errors
  2. frame
  3. giants
  4. CRC
  5. runts
Correct answer: AD
Question 5
Drag and drop the IPv4 network subnets from the left onto the correct usable host ranges on the right.
Correct answer: To work with this question, an Exam Simulator is required.
Question 6
How do TCP and UDP differ in the way that they establish a connection between two endpoints?
  1. TCP uses the three-way handshake, and UDP does not guarantee message delivery.
  2. TCP uses synchronization packets, and UDP uses acknowledgment packets.
  3. UDP provides reliable message transfer, and TCP is a connectionless protocol.
  4. UDP uses SYN, SYN ACK, and FIN bits in the frame header while TCP uses SYN, SYN ACK, and ACK bits.
Correct answer: A
Question 7
Which 802.11 frame type is association response?
  1. management
  2. protected frame
  3. action
  4. control
Correct answer: A
Question 8
In which way does a spine-and-leaf architecture allow for scalability in a network when additional access ports are required?
  1. A spine switch and a leaf switch can be added with redundant connections between them.
  2. A spine switch can be added with at least 40 GB uplinks.
  3. A leaf switch can be added with connections to every spine switch.
  4. A leaf switch can be added with a single connection to a core spine switch.
Correct answer: C
Question 9
Which statement identifies the functionality of virtual machines?
  1. The hypervisor communicates on Layer 3 without the need for additional resources.
  2. Each hypervisor can support a single virtual machine and a single software switch.
  3. The hypervisor can virtualize physical components including CPU, memory, and storage.
  4. Virtualized servers run most efficiently when they are physically connected to a switch that is separate from the hypervisor.
Correct answer: C
Question 10
Which command automatically generates an IPv6 address from a specified IPv6 prefix and MAC address of an interface?
  1. ipv6 address dhcp
  2. ipv6 address 2001:DB8:5:112::/64 eui-64
  3. ipv6 address autoconfig
  4. ipv6 address 2001:DB8:5:112::2/64 link-local
Correct answer: C
