Download Cisco Certified Network Associate (200-301 CCNA).200-301.ExamCollection.2020-03-10.61q.vcex

Vendor: Cisco
Exam Code: 200-301
Exam Name: Cisco Certified Network Associate (200-301 CCNA)
Date: Mar 10, 2020
File Size: 3 MB
Downloads: 2

How to open VCEX files?

Files with VCEX extension can be opened by ProfExam Simulator.

Demo Questions

Question 1

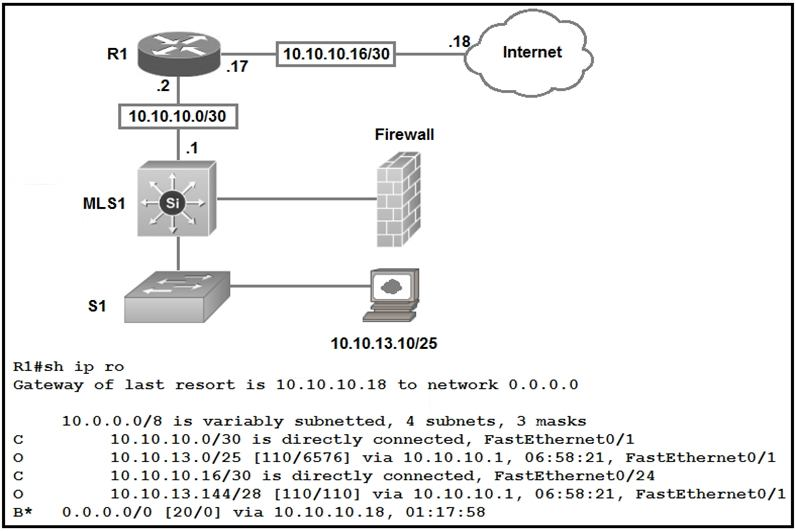

Refer to the exhibit. Which type of route does R1 use to reach host
  1. default route
  2. network route
  3. host route
  4. floating static route
Correct answer: B
Question 2

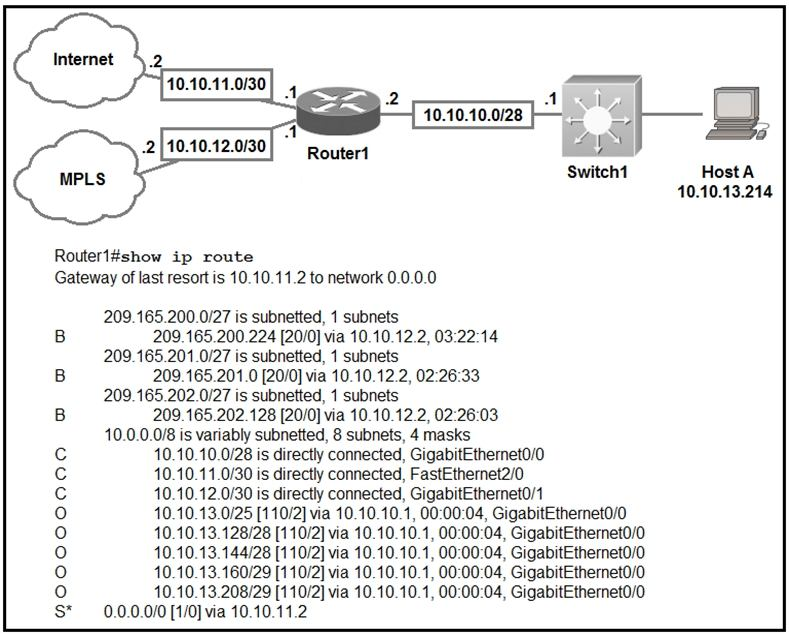

Refer to the exhibit. Which prefix does Router1 use to Host A?
Correct answer: D
Question 3
In which way does a spine-and-leaf architecture allow for scalability in a network when additional access ports are required?
  1. A spine switch and a leaf switch can be added with redundant connections between them.
  2. A spine switch can be added with at least 40 GB uplinks.
  3. A leaf switch can be added with connections to every spine switch.
  4. A leaf switch can be added with a single connection to a core spine switch.
Correct answer: C
Question 4
What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?
  1. The Layer 2 switch forwards the packet and adds the destination MAC address to its MAC address table.
  2. The Layer 2 switch sends a copy of a packet to CPU for destination MAC address learning.
  3. The Layer 2 switch floods packets to all ports except the receiving port in the given VLAN.
  4. The Layer 2 switch drops the received frame.
Correct answer: C
Question 5
An engineer must configure a /30 subnet between two routes. Which usable IP address and subnet mask combination meets this criteria?
  1. interface e0/0
    description to HQ-A370:98968
    ip address
  2. interface e0/0
    description to HQ-A370:98968
    ip address
  3. interface e0/0
    description to HQ-A370:98968
    ip address
  4. interface e0/0
    description to HQ-A370:98968
    ip address
Correct answer: D
Question 6
Which network allows devices to communicate without the need to access the Internet?
Correct answer: B
Question 7
Which IPv6 address type communication between subnets and cannot route on the Internet?
  1. link-local
  2. unique local
  3. multicast
  4. global unicast
Correct answer: B
Question 8
Which IPv6 address block sends packets to a group address rather than a single address?
  1. 2000::/3
  2. FC00::/7
  3. FE80::/10
  4. FF00::/8
Correct answer: D
Question 9
What are two reasons that cause late collisions to increment on an Ethernet interface? (Choose two.)
  1. when Carrier Sense Multiple Access/Collision Detection is used
  2. when one side of the connection is configured for half-duplex
  3. when the sending device waits 15 seconds before sending the frame again
  4. when a collision occurs after the 32nd byte of a frame has been transmitted
  5. when the cable length limits are exceeded
Correct answer: AE
Question 10
What is a benefit of using a Cisco Wireless LAN Controller?
  1. It eliminates the need to configure each access point individually.
  2. Central AP management requires more complex configurations.
  3. Unique SSIDs cannot use the same authentication method.
  4. It supports autonomous and lightweight APs.
Correct answer: A
