Download Cisco Certified Network Associate (200-301 CCNA).200-301.ChineseDumps.2020-10-29.210q.vcex

Vendor: Cisco
Exam Code: 200-301
Exam Name: Cisco Certified Network Associate (200-301 CCNA)
Date: Oct 29, 2020
File Size: 19 MB
Downloads: 6

How to open VCEX files?

Files with VCEX extension can be opened by ProfExam Simulator.

Demo Questions

Question 1
A network engineer must create a diagram of a multivendor network.which command must be configured on the Cisco devices so that the topology of the network can be mapped?
  1. Device(config)#lldp run
  2. Device(config)#cdp run
  3. Device(config)# cdp enable
  4. Device(config)# flow-sampler-map topology
Correct answer: A
Question 2
Which feature on the Cisco Wireless LAN Controller when enabled restricts management access from specific networks?
  1. CPU ACL
  2. TACACS
  3. Flex ACL
  4. RADIUS
Correct answer: A
Explanation:
Reference:https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wlan-security/71978-acl-wlc.html
Reference:
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wlan-security/71978-acl-wlc.html
Question 3
When a site-to-site VPN is used, which protocol is responsible for the transport of user data?
  1. IKEv2
  2. IKEv1
  3. IPsec
  4. MD5
Correct answer: C
Question 4
How do TCP and UDP differ in the way that they establish a connection between two endpoints?
  1. TCP use the three-way handshake,and UDP dose no guarantee message delivery
  2. TCP use synchronization packets,and UDP uses acknowledgement packets
  3. UDP provides reliable message transfer,and TCP is a connectionless protocol.
  4. UDP use SYN,SYN ACK,and FIN bits in the frame header while TCP uses SYN,SYN ACK,and ACK bis.
Correct answer: A
Question 5
What are two reasons that cause late collisions to increment on an Ethernet interface?(choose two)
  1. when the sending device waits 15 seconds before sending the frame again
  2. when the cable length limits are exceeded
  3. when one side of the connection is configured for half-duplex
  4. when Carner Sense Multiple Access/Collision Detection is used
  5. when a collision occurs after the 32nd byte of a frame has been transmitted
Correct answer: BD
Question 6
A Cisco IP phone receive untagged data traffic from an attached PC. Which action is taken by the phone?
  1. It allows the traffic to pass through unchanged
  2. It drops the traffic
  3. It tags the traffic with the default VLAN
  4. It tags the traffic with the native VLAN
Correct answer: A
Question 7

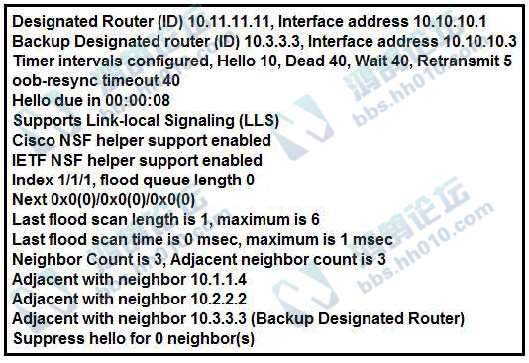

Refer to the exhibit. The show ip ospf interface command has been executed on R1 How is OSPF configured?
  1. The interface is not participating in OSPF
  2. A point-to-point network type is configured
  3. The default Hello and Dead timers are in use
  4. There are six OSPF neighbors on this interface
Correct answer: C
Question 8
What benefit does controller-based networking provide versus traditional networking?
  1. provides an added layer of security to protect from DDoS attacks
  2. combines control and data plane functionality on a single device to minimize latency
  3. moves from a two-tier to a three-tier network architecture to provide maximum redundancy
  4. allows configuration and monitoring of the network from one centralized point
Correct answer: D
Question 9
When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?
  1. The floating static route must have a higher administrative distance than the primary route so it is used as a backup
  2. The administrative distance must be higher on the primary route so that the backup route becomes secondary.
  3. The floating static route must have a lower administrative distance than the primary route so it is used as a backup
  4. The default-information originate command must be configured for the route to be installed into the routing table
Correct answer: A
Question 10
Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?
  1. on
  2. auto
  3. active
  4. desirable
Correct answer: A
