Demo Questions

Question 1

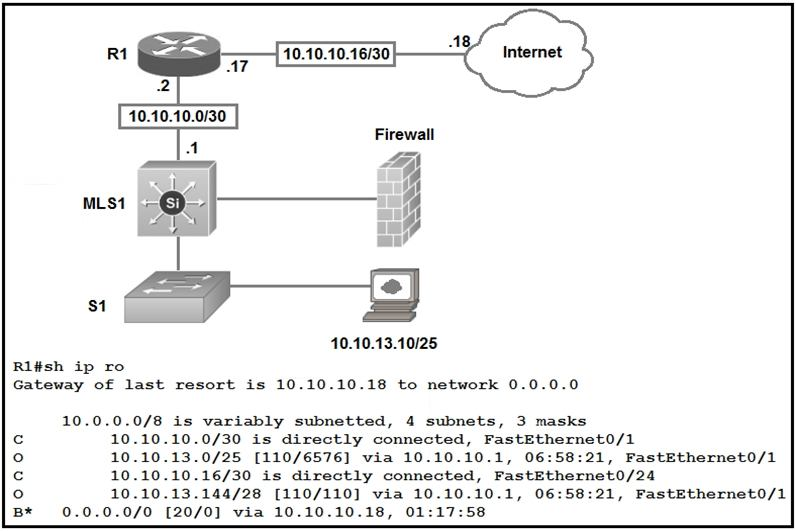

Refer to the exhibit. Which type of route does R1 use to reach host 10.10.13.10/32?
  1. default route
  2. network route
  3. host route
  4. floating static route
Correct answer: B
Question 2

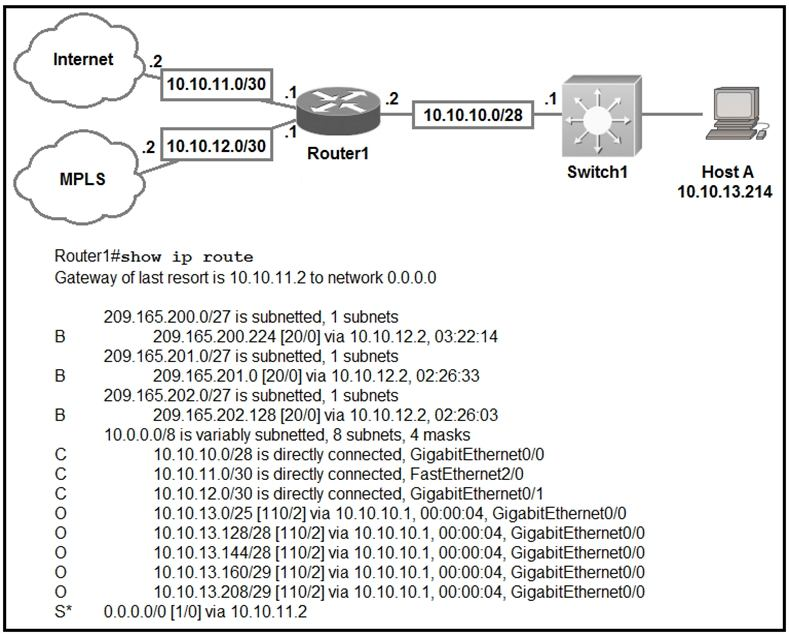

Refer to the exhibit. Which prefix does Router1 use for traffic to Host A?
  1. 10.10.10.0/28
  2. 10.10.13.0/25
  3. 10.10.13.144/28
  4. 10.10.13.208/29
Correct answer: D
Question 3
A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two.)
  1. input errors
  2. frame
  3. giants
  4. CRC
  5. runts
Correct answer: AD
Question 4
Which 802.11 frame type is association response?
  1. management
  2. protected frame
  3. action
  4. control
Correct answer: A
Explanation:
Reference: https://en.wikipedia.org/wiki/802.11_Frame_Types
Reference: https://en.wikipedia.org/wiki/802.11_Frame_Types
Question 5
In which way does a spine-and-leaf architecture allow for scalability in a network when additional access ports are required?
  1. A spine switch and a leaf switch can be added with redundant connections between them.
  2. A spine switch can be added with at least 40 GB uplinks.
  3. A leaf switch can be added with connections to every spine switch.
  4. A leaf switch can be added with a single connection to a core spine switch.
Correct answer: C
Question 6
Which statement identifies the functionality of virtual machines?
  1. The hypervisor communicates on Layer 3 without the need for additional resources.
  2. Each hypervisor can support a single virtual machine and a single software switch.
  3. The hypervisor can virtual physical components including CPU, memory, and storage.
  4. Virtualized servers run most efficiently when they are physically connected to a switch that is separate from the hypervisor.
Correct answer: C
Question 7
Which command automatically generates an IPv6 address from a specified IPv6 prefix and MAC address of an interface?
  1. ipv6 address dhcp
  2. ipv6 address 2001:DB8:5:112::/64 eui-64
  3. ipv6 address autoconfig
  4. ipv6 address 2001:DB8:5:112::2/64 link-local
Correct answer: C
Question 8
An engineer must configure a /30 subnet between two routes. Which usable IP address and subnet mask combination meets this criteria?
  1. interface e0/0
    description to HQ-A370:98968
    ip address 10.2.1.3 255.255.255.252
  2. interface e0/0
    description to HQ-A370:98968
    ip address 192.168.1.1 255.255.255.248
  3. interface e0/0
    description to HQ-A370:98968
    ip address 172.16.1.4 255.255.255.248
  4. interface e0/0
    description to HQ-A370:98968
    ip address 209.165.201.2 225.255.255.252
Correct answer: D
Question 9

Refer to the exhibit. Which statement explains the configuration error message that is received?
  1. It belongs to a private IP address range.
  2. The router does not support /28 mask.
  3. It is a network IP address.
  4. It is a broadcast IP address.
Correct answer: D
Question 10
Which IPv6 address type communication between subnets and cannot route on the Internet?
  1. link-local
  2. unique local
  3. multicast
  4. global unicast
Correct answer: B
