Demo Questions

Question 1
In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?
  1. Deployed
  2. Enabled
  3. Disabled
  4. Active
Correct answer: C
Explanation:
Example:Commission the SBC—SBC Configuration 1. The A1 and B1 interfaces display on the Network Configuration tab. 2. Click on the Interface Configuration tab:    3. Click the Toggle link for both the A1 and the B1 interfaces. The Administrative Status for both A1 and B1 changes to Enabled:References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203
Example:
Commission the SBC—SBC Configuration

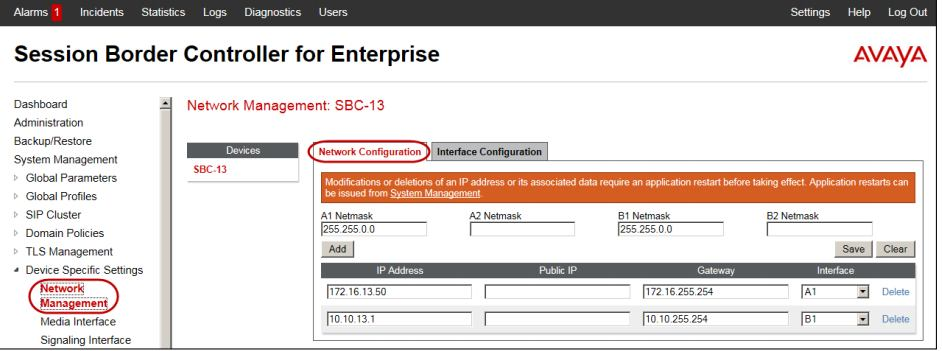

1. The A1 and B1 interfaces display on the Network Configuration tab.

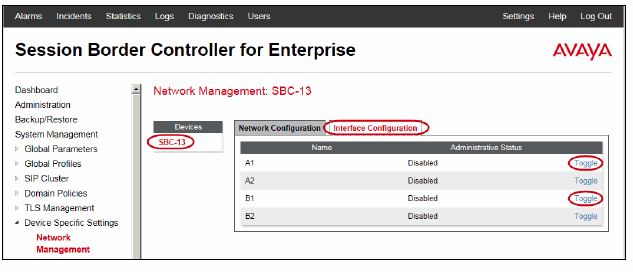

2. Click on the Interface Configuration tab:

3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203
Question 2
To set Timers, URI Manipulation, and Header Manipulation that the Avaya Session Border Controller for Enterprise (SBCE) will use when signaling to the far-end server; a profile like “avaya-ru” is provided by default.
When configuring the Server Configuration, you must link to which type of Global profile?
  1. Signaling
  2. Routing
  3. Topology Hiding
  4. Server Interworking
Correct answer: D
Explanation:
The standard Avaya profile “avaya-ru” is cloned for the Call Server Interworking Profile. The Interworking function of the Global Profiles feature enables the SBCE to function in an enterprise VoIP network using different SIP protocols.   References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 339
The standard Avaya profile “avaya-ru” is cloned for the Call Server Interworking Profile.
The Interworking function of the Global Profiles feature enables the SBCE to function in an enterprise VoIP network using different SIP protocols.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 339
Question 3
On Avaya Session Border Controller for Enterprise (SBCE), where do you access the tool that displays SIP messages, in real time, as they pass through the SBCE?
  1. from Avaya Aura® System Manager, navigate to “Session Border Controller for Enterprise > SBCE Administration” menu
  2. from the SBCE EMS Web Console
  3. from the SBCE Server command line via SSH session, using PuTTY
  4. from the traceSIP client installed on a local PC
Correct answer: C
Explanation:
Stat the tue Tracing Tools, TraceSM, SSH to Session Manager Launch PuTTY (or similar client application) for a SSH session to Session Manager (port 22). Use the Session Manager IP Address (172.16.255.107). Log in. At the Session Manager command line type traceSM –x and press Enter. Note: The traceSM tool shows the SIP call flow in Session Manager.It gives insight into Session Manager’s decisions. Benefit: can filter certain types of SIP messagesShows the state of the dialog Displays changes in real time References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 485
Stat the tue Tracing Tools, TraceSM, SSH to Session Manager
  1. Launch PuTTY (or similar client application) for a SSH session to Session Manager (port 22). Use the Session Manager IP Address (172.16.255.107).
  2. Log in.
  3. At the Session Manager command line type traceSM –x and press Enter.
Note: The traceSM tool shows the SIP call flow in Session Manager.
It gives insight into Session Manager’s decisions.
Benefit: can filter certain types of SIP messages
  • Shows the state of the dialog
  • Displays changes in real time
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 485
Question 4
For an Avaya SIP telephone, working as a Remote Worker via the Avaya Session Border Controller for Enterprise (SBCE), which IP address should be configured in the Server List of the one-X® Communicator?
  1. the SBCE Internal Interface allocated for Mobile Workspace Endpoint
  2. the SBCE External Interface allocated for Mobile Workspace Endpoint
  3. the Internal Avaya Aura® Session Manager SM100 IP Address
  4. the Avaya Aura® Session Manager External Interface allocated for Mobile Workspace Endpoints.
Correct answer: D
Explanation:
Remote Worker Avaya one-X Communicator Configuration The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration. Example: On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:Under Using: select SIP (SIP must be selected; H.323 is not supported for RemoteWorkers). Under Server List, click Add (the Add Server window to the right will appear). Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to Session Manager (public IP not used for relay services). Etc. References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81https://downloads.avaya.com/css/P8/documents/100183254
Remote Worker Avaya one-X Communicator Configuration
The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration.
Example:
  1. On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window.
  2. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:
Under Using: select SIP (SIP must be selected; H.323 is not supported for Remote
Workers).
  • Under Server List, click Add (the Add Server window to the right will appear).
  • Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to Session Manager (public IP not used for relay services).
Etc.
References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81
https://downloads.avaya.com/css/P8/documents/100183254
Question 5
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, which two configuration screens must be configured for Personal Profile Management (PPM) to be successfully downloaded to an Avaya SIP Telephone (AST)? (Choose two.)
  1. PPM Services Mapping Profile
  2. Application Relay
  3. File Transfer
  4. Reverse Proxy
Correct answer: AB
Explanation:
B: Application relays function as port forwards. Different clients require different application relays.A: An Avaya SIP phone downloads and processes a configuration file, sends out a slew of SUBSCRIBE messages, and uses something called Personal Profile Manager (PPM).Note: The PPM is a software module that runs as part of an Avaya Session Manager.  It consists of a series of web services that phones use to retrieve and manage SIP related user data.References: https://andrewjprokop.wordpress.com/2014/03/28/understanding-avayas-personal-profile-manager-ppm/https://downloads.avaya.com/css/P8/documents/101028355
B: Application relays function as port forwards. Different clients require different application relays.
A: An Avaya SIP phone downloads and processes a configuration file, sends out a slew of SUBSCRIBE messages, and uses something called Personal Profile Manager (PPM).
Note: The PPM is a software module that runs as part of an Avaya Session Manager.  It consists of a series of web services that phones use to retrieve and manage SIP related user data.
References: https://andrewjprokop.wordpress.com/2014/03/28/understanding-avayas-personal-profile-manager-ppm/
https://downloads.avaya.com/css/P8/documents/101028355
Question 6
On Avaya Session Border Controller for Enterprise (SBCE), which statement about how to examine messages with Wireshark is true?
  1. You have to start and stop the .pcap file using command line.
  2. You can start and stop a Packet Capture in the EMS web GUI and then you can open the .pcap file with Wireshark.
  3. Wireshark runs directly on Avaya Session Border Controller for Enterprise (SBCE).
  4. They cannot be examined on this version.
Correct answer: B
Explanation:
Viewing the Packet Capture with Wireshark. 0. Start a Packet Capture in the EMS web GUi. 1. After the capture completes, click the Capture tab. 2. Double-click on the capture file name. 3. The File Download window opens. 4. Click Open. The Wireshark application opens the trace. Note: The Wireshark call tracing tool can be used on virtual desktop for vLabs.References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 468
Viewing the Packet Capture with Wireshark.
0. Start a Packet Capture in the EMS web GUi.
1. After the capture completes, click the Capture tab.
2. Double-click on the capture file name.
3. The File Download window opens.
4. Click Open.
The Wireshark application opens the trace.
Note: The Wireshark call tracing tool can be used on virtual desktop for vLabs.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 468
Question 7
After running the Install wizard on Avaya Session Border Controller for Enterprise (SBCE), you added a Public Outside IP address to the B1 interface. You try to ping this IP address from a PC in the same subnet but it falls.
What would you do first to resolve the issue?
  1. Restart Applications.
  2. Set the Default Gateway router IP address, navigate to the Interfaces and Enable the B1 Interface.
  3. Reboot SBCE.
  4. Navigate to Device Specific Settings > Network Management > Interfaces and Enable the B1 interface.
Correct answer: D
Explanation:
The interface might need to be enabled. 1. The A1 and B1 interfaces display on the Network Configuration tab.     2. Click on the Interface Configuration tab.     3. Click the Toggle link for both the A1 and the B1 interfaces. The Administrative Status for both A1 and B1 changes to Enabled References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204
The interface might need to be enabled.
1. The A1 and B1 interfaces display on the Network Configuration tab.

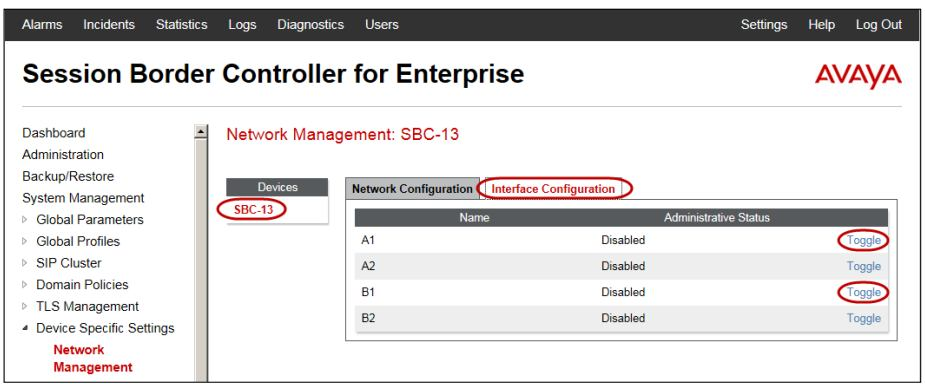

2. Click on the Interface Configuration tab.

3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204
Question 8
What are the three components of Avaya Aura® Messaging (AAM)? (Choose three.)
  1. Messaging Distributor
  2. Application Server
  3. Messaging Store
  4. AxC/Directory
  5. SM100 Module
Correct answer: BCD
Explanation:
The AXC connector is always co-resident with the Avaya message store.     References: Administering Avaya Aura®  Messaging Release 6.2, Issue 2.2 (December 2013)https://downloads.avaya.com/css/P8/documents/100172127
The AXC connector is always co-resident with the Avaya message store.

References: Administering Avaya Aura®  Messaging Release 6.2, Issue 2.2 (December 2013)
https://downloads.avaya.com/css/P8/documents/100172127
Question 9
In Avaya Aura® Messaging 6.3, which statement is true about Avaya Aura® Messaging (AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message Store template?
  1. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
  2. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
  3. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
  4. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
Correct answer: B
Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a dedicated AxC/Directory server for:Release 6.2 and earlier Messaging systems with a third-party storage server. Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange. References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20https://downloads.avaya.com/css/P8/documents/101004642
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a dedicated AxC/Directory server for:
  • Release 6.2 and earlier Messaging systems with a third-party storage server.
  • Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange.
References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642
Question 10
To route calls to Avaya Aura® Messaging (AAM), which routing strategy is used by Avaya Aura® Session Manager (SM)?
  1. Automatic Route Selection (ARS)
  2. Automatic Alternate Routing (AAR)
  3. Network Routing Policies (NRP)
  4. Registry Routing
Correct answer: C
Explanation:
Routing policies describe the conditions under which Session Manager will route calls between Communication Manager and Avaya Aura Messaging. References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature & Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 –Issue 1.0, page 25https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d
Routing policies describe the conditions under which Session Manager will route calls between Communication Manager and Avaya Aura Messaging.
References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature & Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 –Issue 1.0, page 25
https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d
